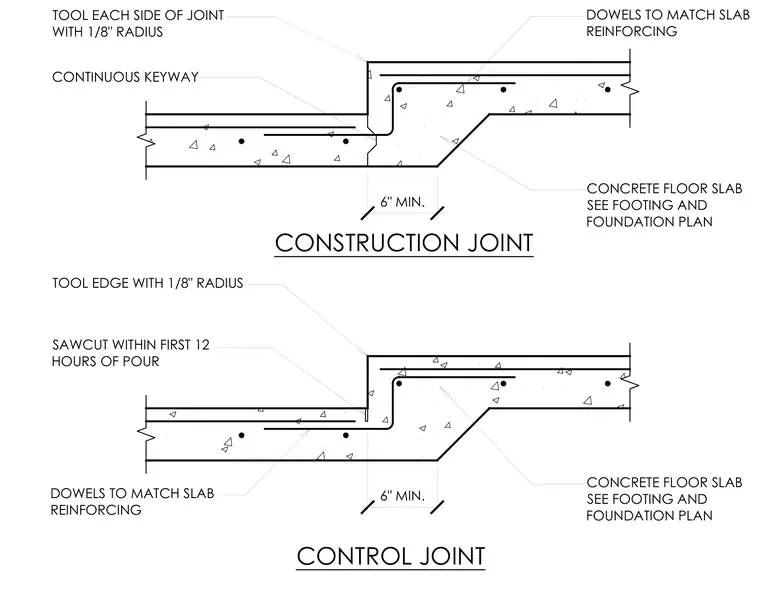

A concrete floor slab transition steps down with a sloped transition and incorporates a continuous keyway along the vertical face of the construction joint. Dowels matching the slab reinforcing span across the joint to maintain load transfer between placements. A minimum six-inch dimension applies to the depression zone, with slab thickness and reinforcing sized per the footing and foundation plan. Control joints require a sawcut executed within the first twelve hours of the pour alongside edges tooled with a one-eighth-inch radius.
SAWCUT WITHIN FIRST 12 HOURS OF POUR TOOL EDGE WITH 1/8" RADIUS CONCRETE FLOOR SLAB SEE FOOTING AND FOUNDATION PLAN CONCRETE FLOOR SLAB SEE FOOTING AND FOUNDATION PLAN CONTINUOUS KEYWAY TOOL EACH SIDE OF JOINT WITH 1/8" RADIUS DOWELS TO MATCH SLAB REINFORCING DOWELS TO MATCH SLAB REINFORCING CONSTRUCTION JOINT CONTROL JOINT 6" MIN. 6" MIN. ft ■y 4 4 4 £ n 4 £b b ■ in 4 b 4 T 3 ! '£1 F SA b b \ V 7T^ ■c^ 4 ' • b 4 £ n tN 4 % IN £ n '4 a A a A
