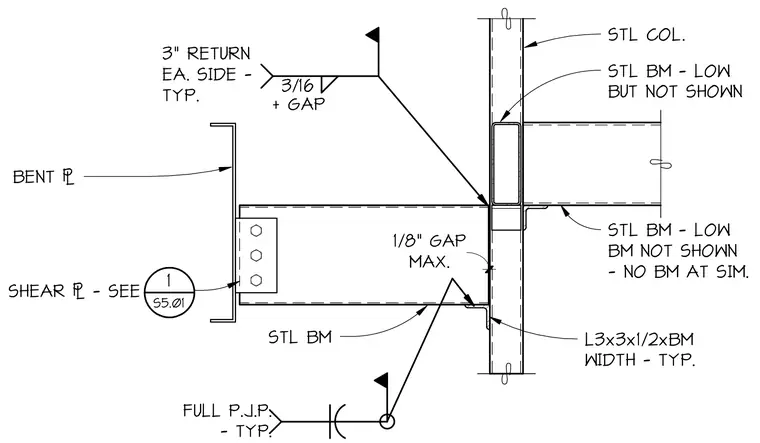

A steel beam connects to a structural steel column utilizing a shear plate reference detail. A structural steel angle measuring 3x3x1/2 spans the beam width typically at the underside. A maximum 1/8-inch gap is maintained between members, welded with full partial-joint-penetration welds typically. A bent plate attaches at the beam end with a shear plate detailed on sheet S5.01. Three-inch returns are provided on each side with 3/16-inch fillet welds plus gap.
SHEAR ( - SEE BENT ( 1 S5.01 STL BM FULL P.J.P. - TYP. MAX. 1/8" GAP 3/16 + GAP 3" RETURN EA. SIDE - TYP. STL COL. STL BM - LOW BUT NOT SHOWN STL BM - LOW BM NOT SHOWN - NO BM AT SIM. L3x3x1/2xBM WIDTH - TYP.
