Mechanical Opening Framing Plan Detail at Wide Flange Beams

Elements

About this detail

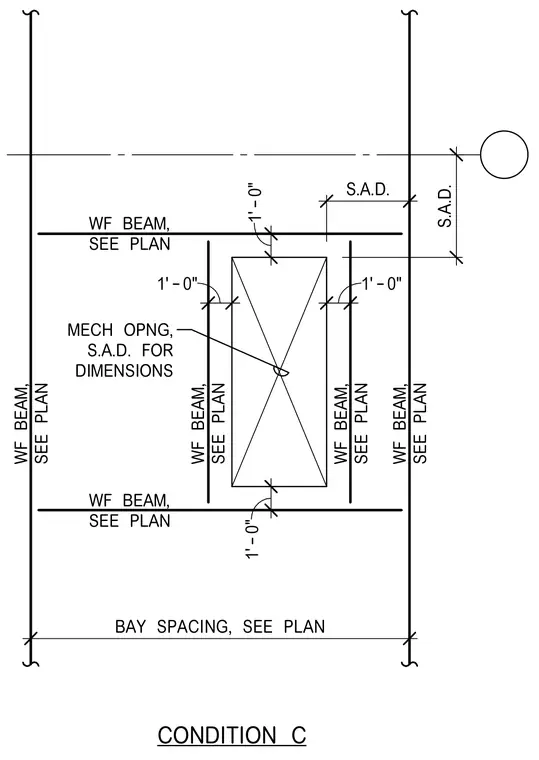

This structural framing plan details a mechanical opening framed by wide flange beams sized per plan. Dimensions of one foot mark the clearance around the mechanical opening, with specific spacing verified from the structural grid lines. The bay spacing is coordinated per plan, and structural dimensions are referenced as required.
