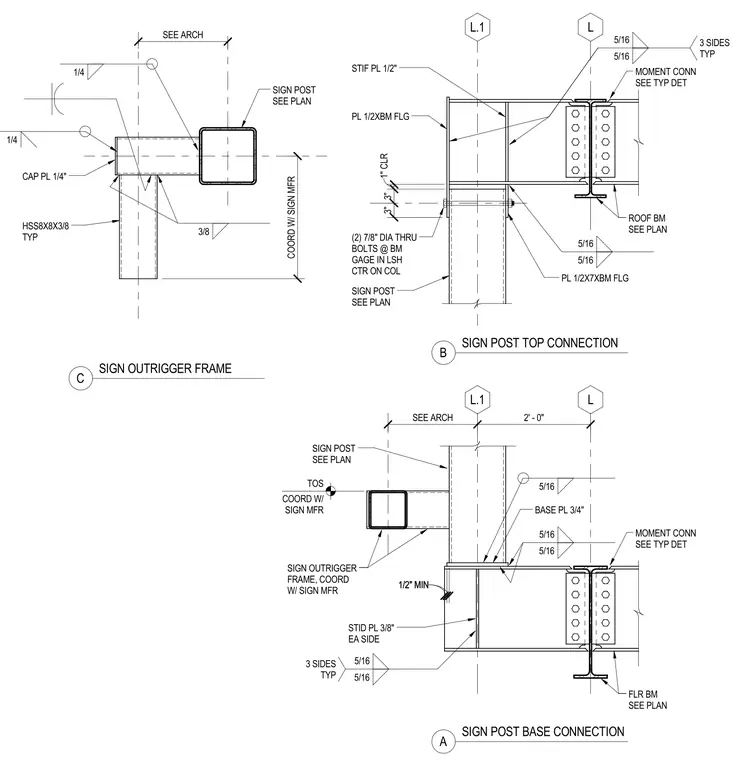

An HSS8x8x3/8 sign post connects to structural steel roof and floor framing using welded plates and through bolts. The sign post top connection features a 1/2-inch plate welded to the beam flange with 5/16-inch fillet welds on three sides, and two 7/8-inch diameter through bolts at the beam gauge. The sign post base connection incorporates a 3/4-inch base plate and 3/8-inch stiffener plates on each side with 5/16-inch fillet welds. A sign outrigger frame constructed from HSS tubing with a 1/4-inch cap plate ties into the assembly, coordinated with the sign manufacturer.
BASE PL 3/4" A SIGN POST BASE CONNECTION B SIGN POST TOP CONNECTION MOMENT CONN SEE TYP DET 5/16 TOS COORD W/ SIGN MFR 5/16 5/16 STID PL 3/8" EA SIDE 5/16 5/16 3 SIDES TYP 1/2" MIN 1/2" MIN C SIGN OUTRIGGER FRAME MOMENT CONN SEE TYP DET ROOF BM SEE PLAN SIGN POST SEE PLAN L.1 L SEE ARCH 2' - 0" SIGN POST SEE PLAN SIGN OUTRIGGER FRAME, COORD W/ SIGN MFR L.1 L FLR BM SEE PLAN COORD W/ SIGN MFR SEE ARCH 3/8 CAP PL 1/4" 1/4 HSS8X8X3/8 TYP 1/4 SIGN POST SEE PLAN 1" CLR 3" 3" PL 1/2XBM FLG (2) 7/8" DIA THRU BOLTS @ BM GAGE IN LSH CTR ON COL STIF PL 1/2" 5/16 5/16 3 SIDES TYP PL 1/2X7XBM FLG 5/16 5/16
