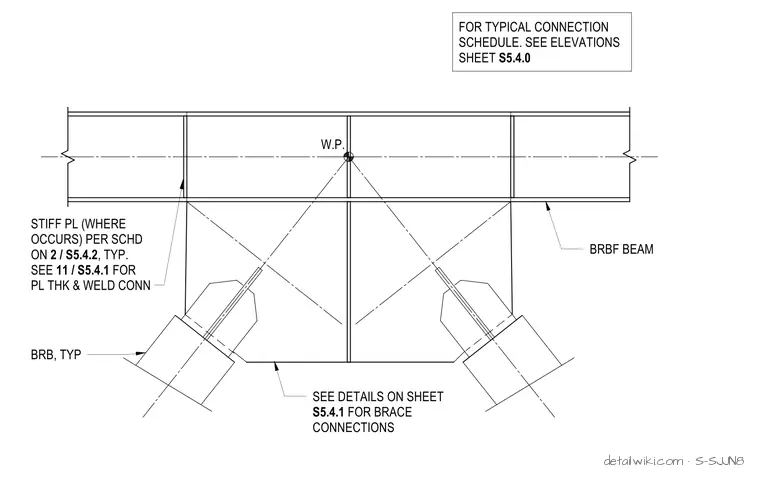

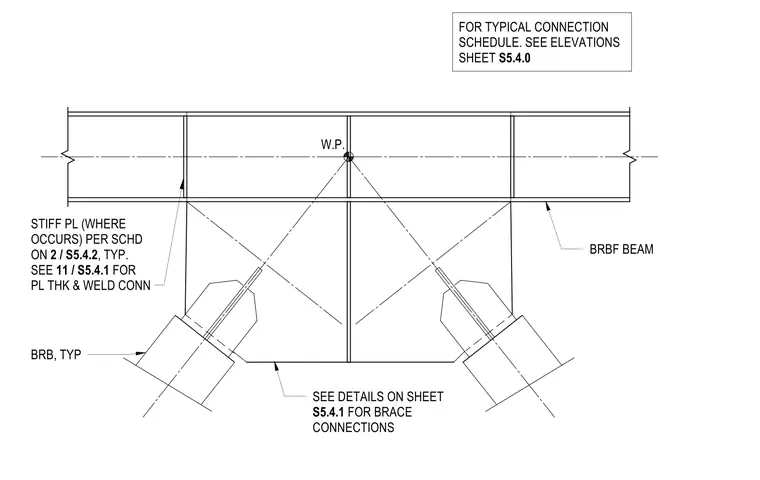

This buckling-restrained braced frame inverted-V connection detail features a horizontal beam framing into gusset plates where two buckling-restrained braces intersect at a common work point. Stiffener plates are installed where required per the schedule on sheet S5.4.2, and plate thicknesses and weld connections are detailed per sheet S5.4.1. Additional brace connections are referenced to sheet S5.4.1, while overall elevations are coordinated with sheet S5.4.0.
SEE DETAILS ON SHEET S5.4.1 FOR BRACE CONNECTIONS STIFF PL (WHERE OCCURS) PER SCHD ON 2 / S5.4.2 , TYP. SEE 11 / S5.4.1 FOR PL THK & WELD CONN W.P. BRBF BEAM BRB, TYP FOR TYPICAL CONNECTION SCHEDULE. SEE ELEVATIONS SHEET S5.4.0
