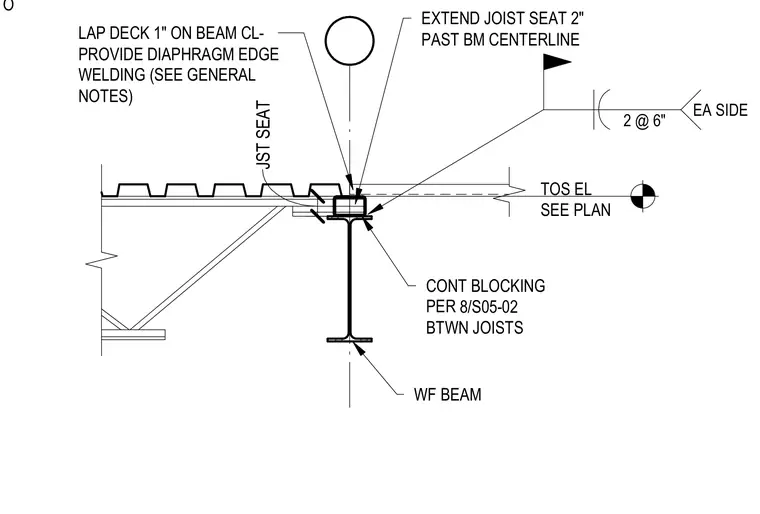

An open web steel joist seat extends two inches past the beam centerline bearing on a wide flange beam. Metal deck laps one inch on the beam centerline with diaphragm edge welding provided per general notes. Continuous blocking is installed between joists per detail 8/S05-02. Welds attach the joist seat to the beam flange at two places at six inches spacing on each side.
CONT BLOCKING PER BTWN JOISTS LAP DECK 1" ON BEAM CL- PROVIDE DIAPHRAGM EDGE WELDING (SEE GENERAL NOTES) TOS EL SEE PLAN WF BEAM 2 @ 6" EA SIDE JST SEAT EXTEND JOIST SEAT 2" PAST BM CENTERLINE 8/S05-02 C4s TO
