A structural steel column bears on a base plate anchored to a concrete foundation by anchor rods. Non-shrink grout fills the gap beneath the base plate up to the top of concrete elevation shown on plans. The base plate finishing requirements vary by plate thickness: plates two inches or less are finished as rolled, plates between two and four inches are pressed or milled, and plates greater than four inches are milled. A finished column end surface rests directly on the base plate.

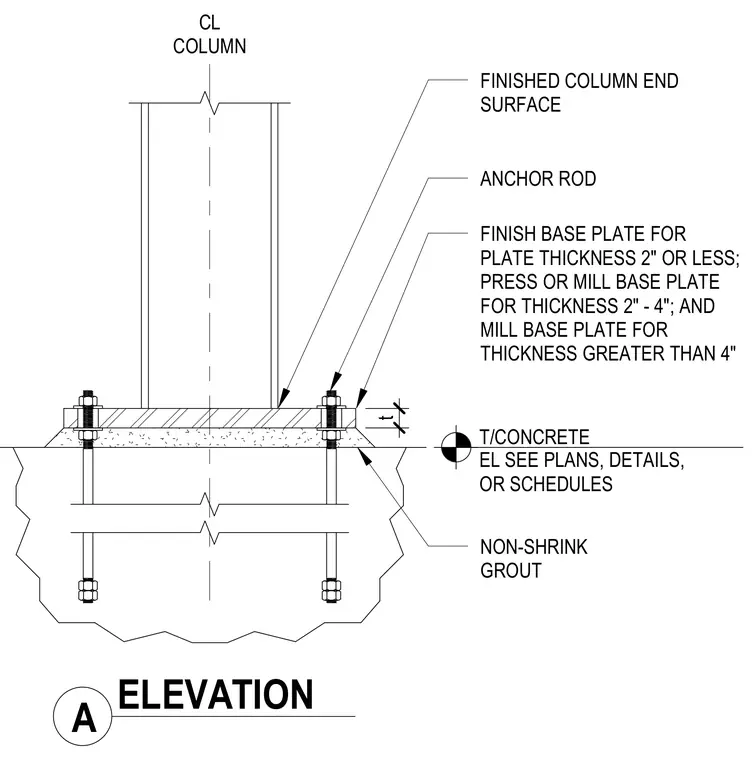

FINISHED COLUMN END SURFACE ANCHOR ROD FINISH BASE PLATE FOR PLATE THICKNESS 2" OR LESS; PRESS OR MILL BASE PLATE FOR THICKNESS 2" - 4"; AND MILL BASE PLATE FOR THICKNESS GREATER THAN 4" NON-SHRINK GROUT CL COLUMN t T/CONCRETE EL SEE PLANS, DETAILS, OR SCHEDULES A ELEVATION
