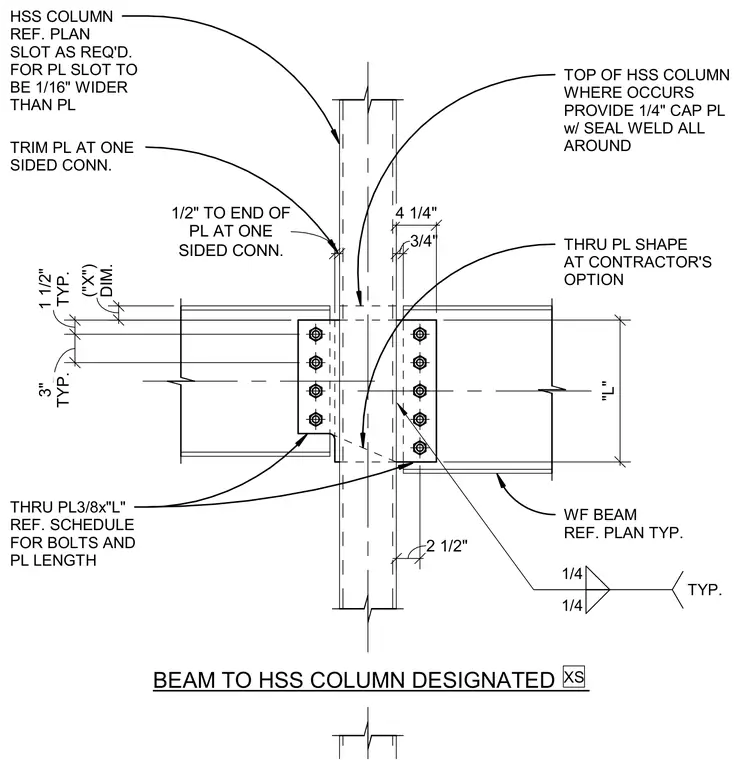

A wide-flange beam connects to a hollow structural section column using a three-eighths-inch through-plate, with bolt sizes and plate lengths sized per schedule. The through-plate passes through a slot in the hollow structural section column, which is detailed one-sixteenth-inch wider than the plate. The plate is trimmed at one-sided connections, maintaining a half-inch clearance to the end of the plate. At the top of the hollow structural section column, a quarter-inch cap plate is provided with a seal weld all around. The connection uses typical quarter-inch fillet welds and standard edge distances, with through-plate shapes provided at the contractor's option.
HSS COLUMN REF. PLAN SLOT AS REQ'D. FOR PL SLOT TO BE 1/16" WIDER THAN PL TRIM PL AT ONE SIDED CONN. TOP OF HSS COLUMN WHERE OCCURS PROVIDE 1/4" CAP PL w/ SEAL WELD ALL AROUND WF BEAM REF. PLAN TYP. 1/4 1/4 TYP. THRU PL3/8x"L" REF. SCHEDULE FOR BOLTS AND PL LENGTH BEAM TO HSS COLUMN DESIGNATED XS TYP. 3" TYP. 1 1/2" THRU PL SHAPE AT CONTRACTOR'S OPTION SIDED CONN. 1/2" TO END OF PL AT ONE 2 1/2" "L" 3/4" 4 1/4" DIM. ("X")
