Structural · S-SJ4SB

Buckling-Restrained Brace Connection at Steel Column and Beam

Materials

Steel

Elements

Columns Beams Bracing Connections / Plates

Connections

Gusset Plate Bracing Connection Bolted Connection

About this detail

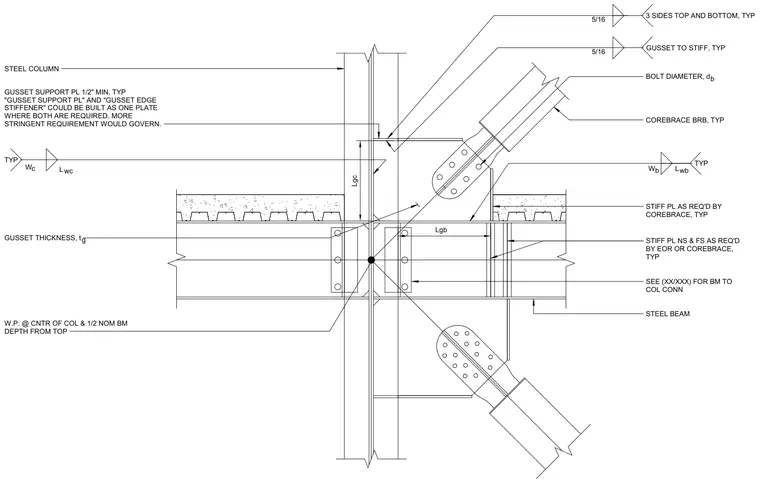

A buckling-restrained brace connects to a steel column and steel beam intersection using gusset plates and stiffener plates on the near side and far side. A five-sixteenth-inch fillet weld secures the gusset to the stiffener on three sides top and bottom typically. Additional stiffener plates are provided as required by the manufacturer or engineer of record. The work point is located at the center of the column and one-half the nominal beam depth from the top flange.
