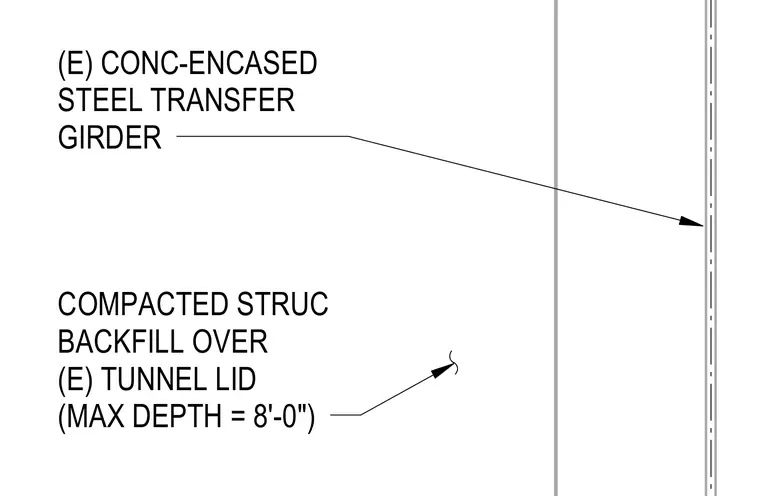

Compacted structural backfill is placed over an existing tunnel lid with a maximum depth of eight feet. The assembly interfaces with an existing concrete-encased steel transfer girder.
COMPACTED STRUC BACKFILL OVER (E) TUNNEL LID (MAX DEPTH = 8'-0") (E) CONC-ENCASED STEEL TRANSFER GIRDER
