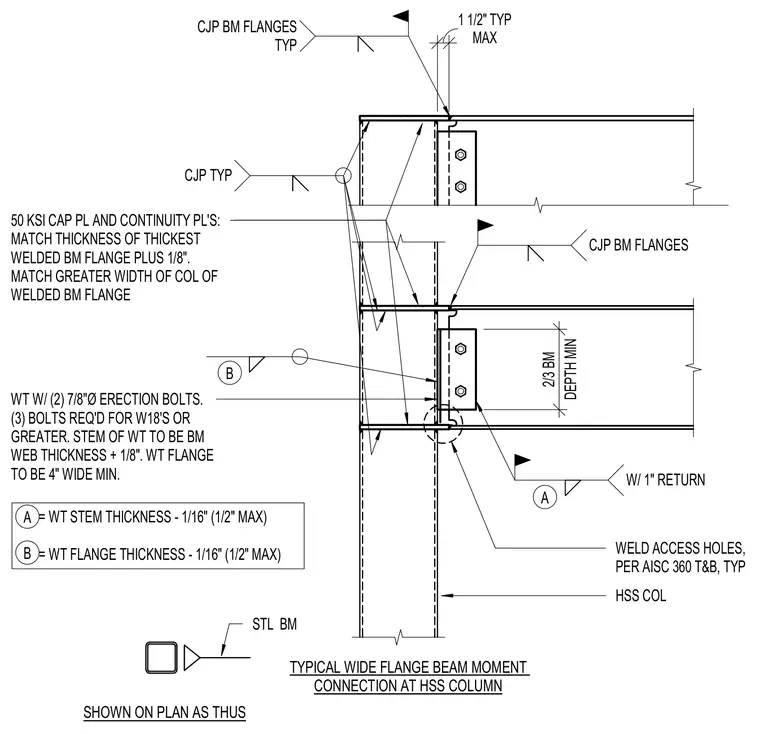

A wide flange beam moment connection frames into a hollow structural section column. The beam flanges are welded directly to the column using complete joint penetration welds with a one-inch return, incorporating fifty ksi cap plates and continuity plates sized to match the thickest welded beam flange plus one-eighth inch. The beam web is supported by a structural tee containing two seven-eighths inch diameter erection bolts, with three bolts required for w-eighteen shapes or greater. Weld access holes are detailed per aisc three-sixty standards at the beam web and flange junctions.
TYPICAL WIDE FLANGE BEAM MOMENT CONNECTION AT HSS COLUMN HSS COL MAX 1 1/2" TYP 50 KSI CAP PL AND CONTINUITY PL'S: MATCH THICKNESS OF THICKEST WELDED BM FLANGE PLUS 1/8". MATCH GREATER WIDTH OF COL OF WELDED BM FLANGE CJP TYP CJP BM FLANGES TYP DEPTH MIN 2/3 BM WELD ACCESS HOLES, PER AISC 360 T&B, TYP B CJP BM FLANGES W/ 1" RETURN A WT W/ (2) 7/8"Ø ERECTION BOLTS. (3) BOLTS REQ'D FOR W18'S OR GREATER. STEM OF WT TO BE BM WEB THICKNESS + 1/8". WT FLANGE TO BE 4" WIDE MIN. = WT STEM THICKNESS - 1/16" (1/2" MAX) = WT FLANGE THICKNESS - 1/16" (1/2" MAX) A B SHOWN ON PLAN AS THUS STL BM
