A collector beam frames into a wide-flange column using a bolted web connection and a bottom flange reinforcement plate matching the beam flange thickness. The web connection utilizes ten bolts, maintaining a minimum one-and-a-half-inch clearance from any complete joint penetration welds. A half-inch plate matches the beam web thickness, and the bottom flange is blocked on each side with a one-by-sixteen-inch plate aligned with the opposing beam bottom flange. A complete joint penetration weld is ground smooth when there is no bottom flange, and a five-sixteenth-inch fillet weld secures the reinforcement assembly. A buckling-restrained braced frame beam connects on the opposite side of the column per elevation.

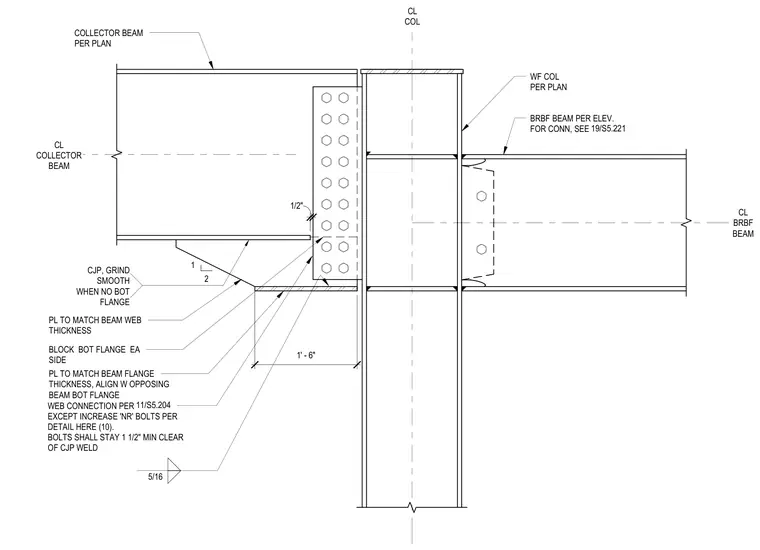

WF COL PER PLAN 1/2" PL TO MATCH BEAM WEB THICKNESS BLOCK BOT FLANGE EA SIDE PL TO MATCH BEAM FLANGE THICKNESS, ALIGN W OPPOSING BEAM BOT FLANGE WEB CONNECTION PER EXCEPT INCREASE 'NR' BOLTS PER DETAIL HERE (10). BOLTS SHALL STAY 1 1/2" MIN CLEAR OF CJP WELD 11/S5.204 CJP, GRIND SMOOTH WHEN NO BOT FLANGE 5/16 COLLECTOR BEAM PER PLAN BRBF BEAM PER ELEV. FOR CONN, SEE CL COLLECTOR BEAM CL COL CL BRBF BEAM 2 1 1' - 6" 19/S5.221
