A hollow structural section connects to a concrete panel using a 1/2-inch by 9-inch by 1-foot 6-inch steel plate embedded with four 3/4-inch diameter by 6-inch long stud bolts at 6-inch gauge. The structural steel member is welded to the plate with a 1/4-inch fillet weld, and a C-channel is attached per plan. All welded edges are ground smooth and prepared for prime and paint.

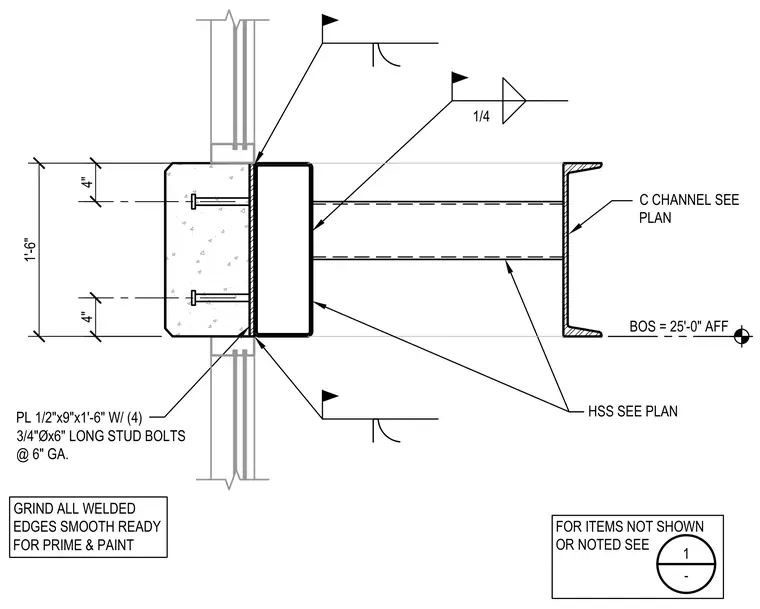

C CHANNEL SEE PLAN 4" 1/4 PL 1/2"x9"x1'-6" W/ (4) 3/4"Øx6" LONG STUD BOLTS @ 6" GA. HSS SEE PLAN GRIND ALL WELDED EDGES SMOOTH READY FOR PRIME & PAINT 4" FOR ITEMS NOT SHOWN OR NOTED SEE 1 - 1'-6" BOS = 25'-0" AFF
