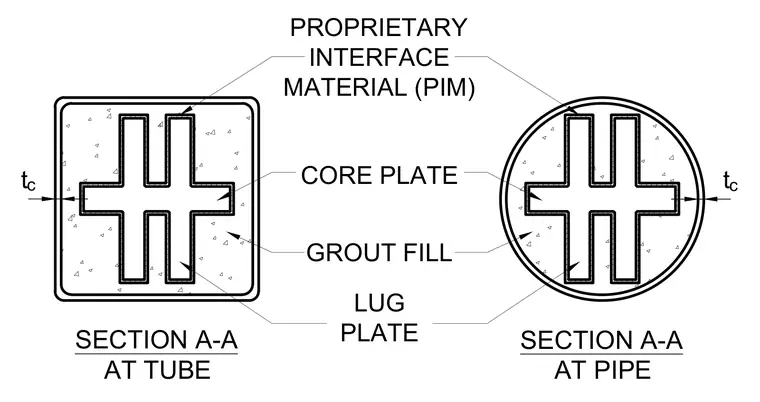

A core plate and lug plate assembly is embedded within grout fill inside a hollow structural section tube and pipe. A proprietary interface material lines the interior face of the structural steel member. The grout fill surrounds the central core plate and lug plate profile. Thickness dimensions for the structural member are designated as t sub c.
LUG PLATE PROPRIETARY INTERFACE MATERIAL (PIM) t c t c GROUT FILL CORE PLATE SECTION A-A AT TUBE SECTION A-A AT PIPE
