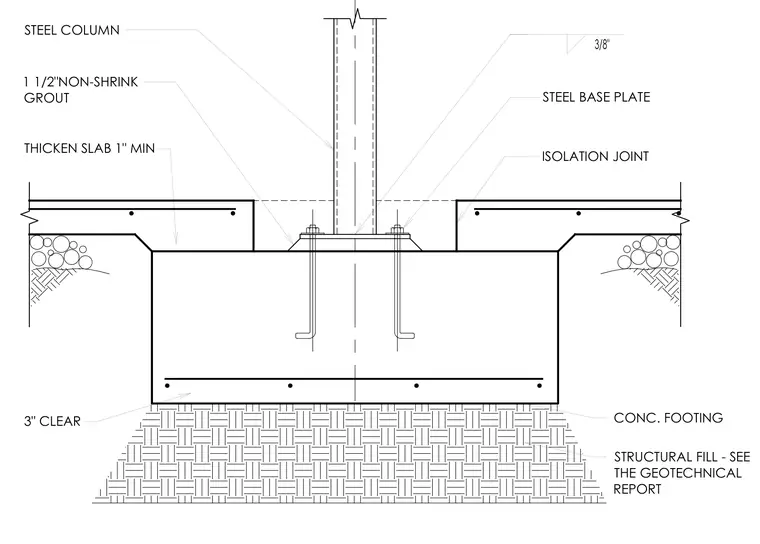

A structural steel column terminates at a steel base plate anchored into a cast-in-place concrete footing with hooked anchor bolts. A one-and-a-half-inch layer of non-shrink grout fills the space beneath the base plate. The surrounding concrete slab features a one-inch minimum thickened section separated from the footing by an isolation joint. The footing bears on structural fill with three inches of clear cover over bottom reinforcing steel.
ISOLATION JOINT STEEL BASE PLATE STEEL COLUMN 1 1/2"NON-SHRINK GROUT THICKEN SLAB 1" MIN CONC. FOOTING 3/8" 3" CLEAR STRUCTURAL FILL - SEE THE GEOTECHNICAL REPORT
