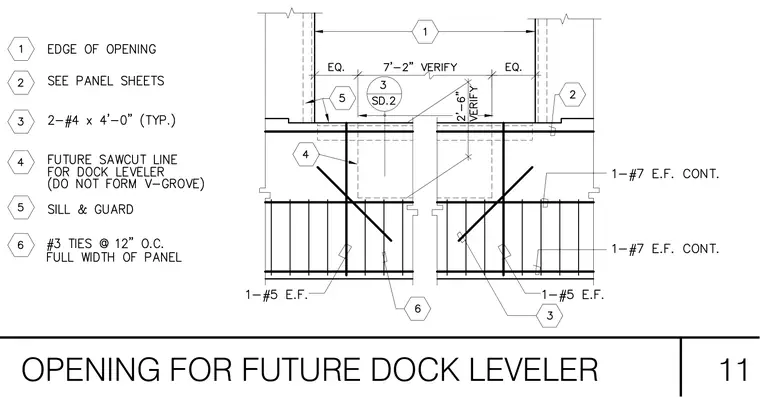

An opening for a future dock leveler measuring seven feet two inches wide by two feet six inches verify, featuring continuous reinforcement bars and transverse ties. The assembly incorporates number seven continuous reinforcing bars each face alongside number five reinforcing bars, complemented by two number four bars at four feet zero inches typical at corners. A designated future sawcut line is marked for the dock leveler without forming a vee-groove. Number three ties are spaced at twelve inches on center across the full width of the panel.
