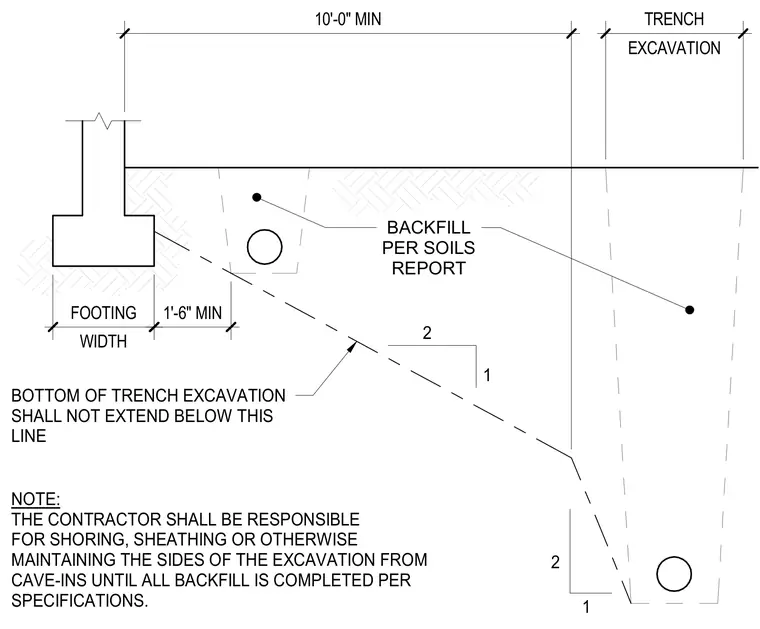

A footing of specified width is shown adjacent to a trench excavation maintaining a minimum ten-foot horizontal separation. The bottom of the trench excavation must not extend below the sloped plane defined on the drawing. Backfill must be placed per the soils report. The contractor remains responsible for shoring, sheathing, and maintaining excavation sides to prevent cave-ins until backfill is fully completed.
2 2 1 1 NOTE: THE CONTRACTOR SHALL BE RESPONSIBLE FOR SHORING, SHEATHING OR OTHERWISE MAINTAINING THE SIDES OF THE EXCAVATION FROM CAVE-INS UNTIL ALL BACKFILL IS COMPLETED PER SPECIFICATIONS. BOTTOM OF TRENCH EXCAVATION SHALL NOT EXTEND BELOW THIS LINE BACKFILL PER SOILS REPORT 10'-0" MIN EXCAVATION TRENCH WIDTH FOOTING 1'-6" MIN
