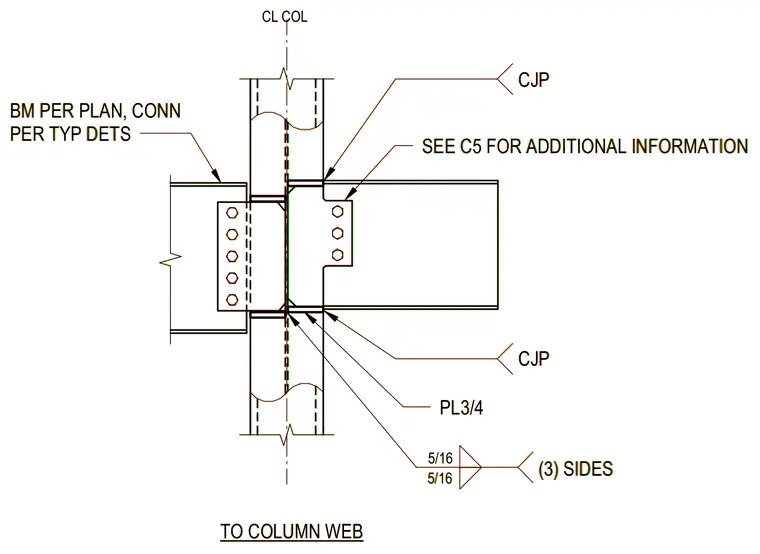

A structural steel beam connects to the column web using a connection sized per plan and typical details. A three-quarter-inch plate is secured with complete joint penetration welds at the column centerline. Three-sided five-sixteenth-inch fillet welds attach the plate assembly. Additional connection information is referenced on sheet C5.
TO COLUMN WEB BM PER PLAN, CONN PER TYP DETS SEE C5 FOR ADDITIONAL INFORMATION CL COL CJP CJP PL3/4 (3) SIDES 5/16 5/16 TO COLUMN WEB BM PER PLAN, CONN PER TYP DETS SEE C5 FOR ADDITIONAL INFORMATION CL COL CJP CJP PL3/4 (3) SIDES 5/16 5/16
