Steel Member Penetration Plates and Reinforcement Details

Materials

About this detail

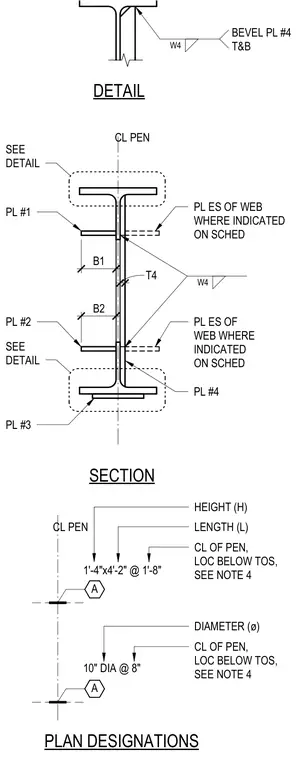

A structural steel wide-flange beam web penetration is reinforced with welded plates including Plate 1, Plate 2, Plate 3, and Plate 4 placed at specified locations along the web and flanges. Plate 4 is attached to the top and bottom with a W4 fillet weld and a bevel plate detail. Additional plates are welded on each side of the web where indicated on the schedule. Plan designations show penetration dimensions, centerlines, and locations below top of steel.
