A built-up concrete slab is constructed over expanded polystyrene fill supported by an existing slab or deck. Number three adhesive anchors with four-inch embedment are spaced at twelve inches on center each way and require a pull test to 4,200 pounds at the perimeter. The interface features a one-quarter-inch amplitude roughened joint where the depth of the new concrete reaches six inches. A block-out provides a two-and-one-half-inch minimum depression with a scratch finish at the lower edge, tapering to a one-inch minimum edge condition. The top slab slopes as indicated on the architectural drawings.

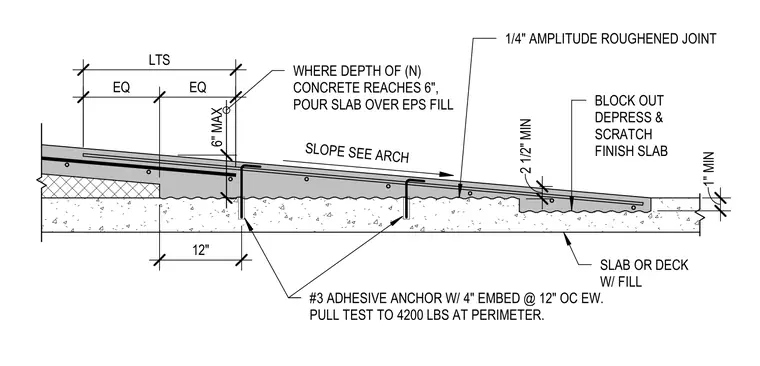

12" 6" MAX 2 1/2" MIN 1" MIN SLOPE SEE ARCH SLAB OR DECK W/ FILL #3 ADHESIVE ANCHOR W/ 4" EMBED @ 12" OC EW. PULL TEST TO 4200 LBS AT PERIMETER. BLOCK OUT DEPRESS & SCRATCH FINISH SLAB 1/4" AMPLITUDE ROUGHENED JOINT WHERE DEPTH OF (N) CONCRETE REACHES 6", POUR SLAB OVER EPS FILL LTS EQ EQ
