Structural · S-SG7E6

Concrete Slab Reinforcing Layering Layout

Elements

About this detail

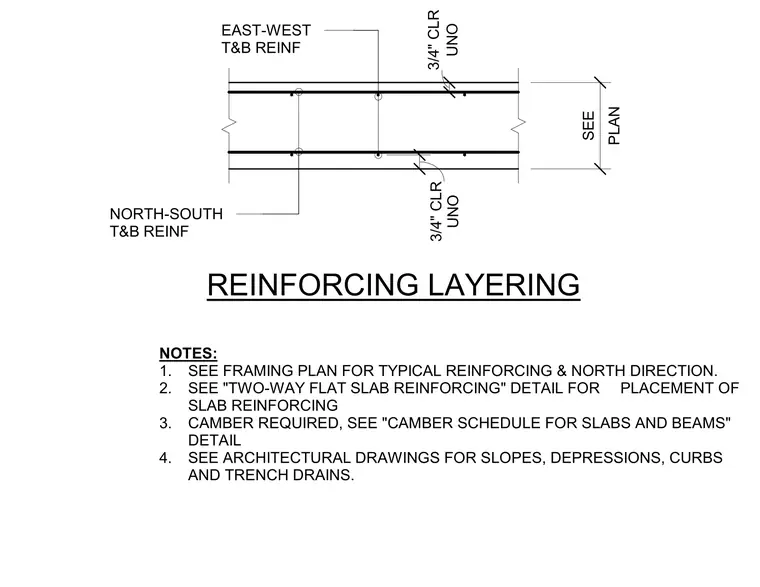

Layering sequence and clear cover requirements for concrete slab reinforcement. North-south and east-west top and bottom reinforcing bars are positioned with a typical three-quarter inch clear cover unless otherwise noted. Slab thickness is sized per plan, and notes direct coordination with framing plans, camber schedules, and architectural drawings for slopes and depressions.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
