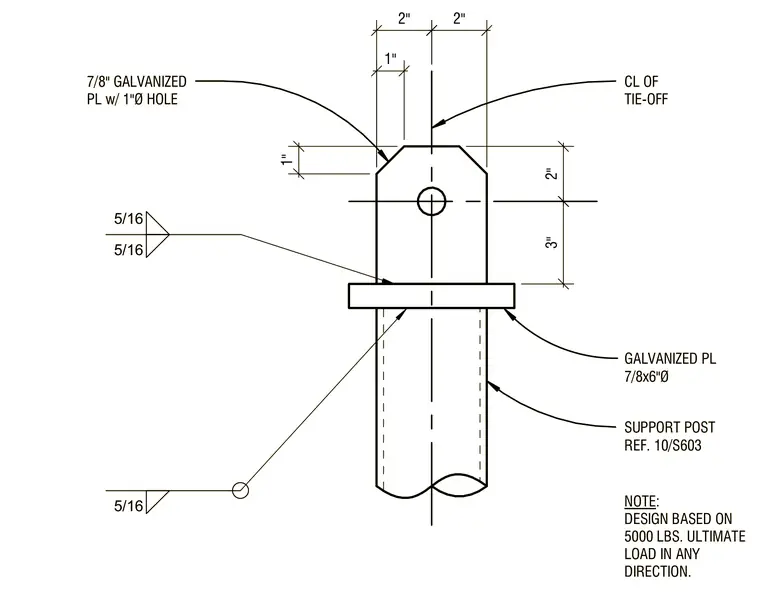

A seven-eighths-inch by six-inch diameter galvanized plate with a one-inch diameter hole is welded to a support post with five-sixteenths-inch fillet welds. The assembly is designed for a five-thousand-pound ultimate load in any direction. The support post references sheet S603 for additional framing conditions.
CL OF TIE-OFF GALVANIZED PL 7/8x6"Ø SUPPORT POST REF. 10/S603 7/8" GALVANIZED PL w/ 1"Ø HOLE 2" 2" 1" 1" 2" 3" 5/16 5/16 5/16 NOTE: DESIGN BASED ON 5000 LBS. ULTIMATE LOAD IN ANY DIRECTION. CL OF TIE-OFF GALVANIZED PL 7/8x6"Ø SUPPORT POST REF. 10/S603 7/8" GALVANIZED PL w/ 1"Ø HOLE 2" 2" 1" 1" 2" 3" 5/16 5/16 5/16 NOTE: DESIGN BASED ON 5000 LBS. ULTIMATE LOAD IN ANY DIRECTION.
