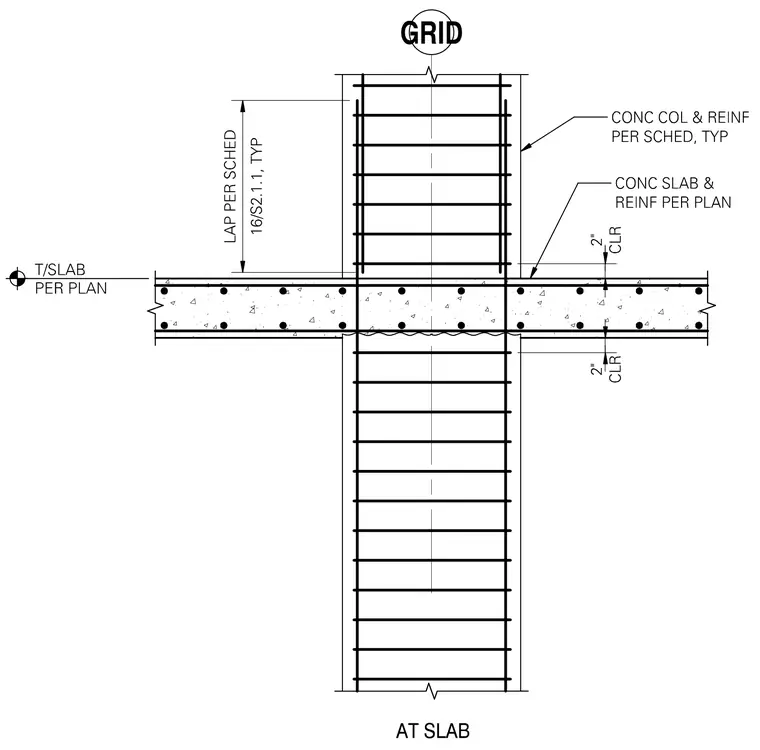

Concrete columns and reinforcement are specified per the schedule with typical lap lengths conforming to standard specifications. The concrete slab and reinforcement are configured per plan with a two inch clearance maintained at the top and bottom. A grid line aligns with the center of the column while the top of the slab is established per plan.
