Structural · S-SFS7T

Column Base to Steel Beam Connection

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Base Plate / Anchorage Bolted Connection

About this detail

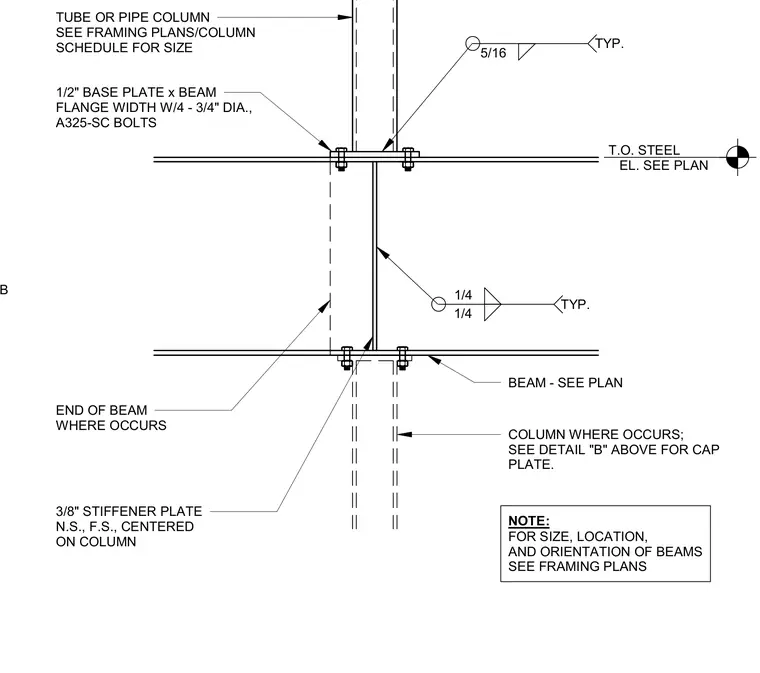

This structural connection details a tubular or pipe steel column bearing onto a steel beam flange with a one-half-inch base plate fastened by three-quarter-inch diameter A325-SC bolts. Three-eighths-inch stiffener plates are centered on the column end of the beam near side and far side, welded with five-sixteenth-inch typical fillet welds. The supporting steel beam web is welded with quarter-inch typical fillet welds on both sides. A lower column continues below, referencing framing plans and column schedules for sizing and placement.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
