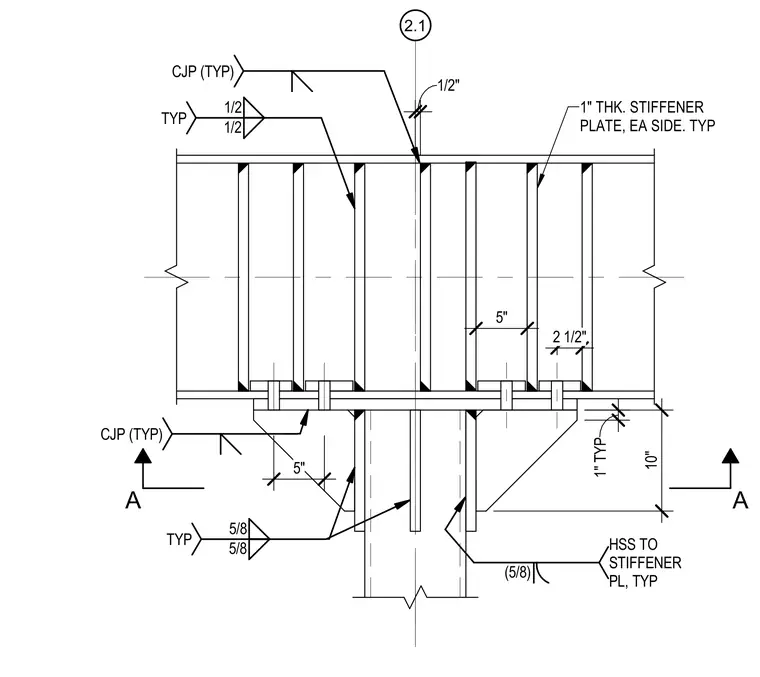

This structural steel detail shows a heavy hollow structural section hanger connection with one-inch thick stiffener plates welded to each side. The assembly utilizes complete joint penetration welds and fillet welds matching the specified sizes throughout the connection. Five-eighths inch fillet welds secure the hollow structural section to the stiffener plates. Additional one-half inch plates and specified dimensioning govern the geometry of the structural junction.
2.1 1/2 1/2 TYP 1/2" CJP (TYP) 1" THK. STIFFENER PLATE, EA SIDE. TYP CJP (TYP) 10" 5/8 5/8 TYP (5/8) HSS TO STIFFENER PL, TYP A A 5" 2 1/2" 5" 1" TYP
