A hollow structural section spreader beam connects to a reinforced concrete mat foundation using a half-inch thick by eight-inch wide by one-foot long embed plate anchored by four half-inch diameter by six-inch welded headed studs. The structural steel member attaches to the embed assembly with quarter-inch by four-inch by six-inch plates on each side, secured by two three-quarter-inch diameter thru-bolts in horizontal short slotted holes. Additional reinforcement consists of two number four bars at forty-eight inches minimum length embedded in the concrete mat. Fillet welds of three-sixteenths inch size typical join the connection plates. A maximum one-half inch gap is maintained at the structural interface, with top of slab and top of steel elevations sized per plan.

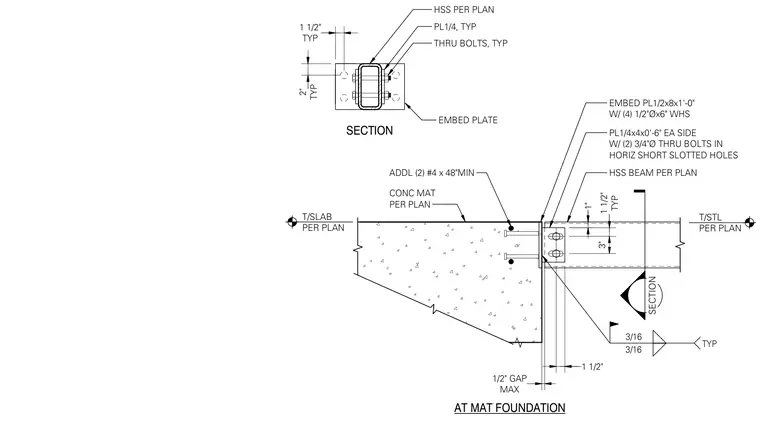

3/16 3/16 TYP SECTION EMBED PL1/2x8x1'-0" W/ (4) 1/2"Øx6" WHS PL1/4x4x0'-6" EA SIDE W/ (2) 3/4"Ø THRU BOLTS IN HORIZ SHORT SLOTTED HOLES HSS BEAM PER PLAN ADDL (2) #4 x 48"MIN MAX 1/2" GAP EMBED PLATE SECTION 1" TYP 1 1/2" 3" AT MAT FOUNDATION CONC MAT PER PLAN PL1/4, TYP THRU BOLTS, TYP HSS PER PLAN TYP 2" TYP 1 1/2" 1 1/2" T/STL PER PLAN T/SLAB PER PLAN
