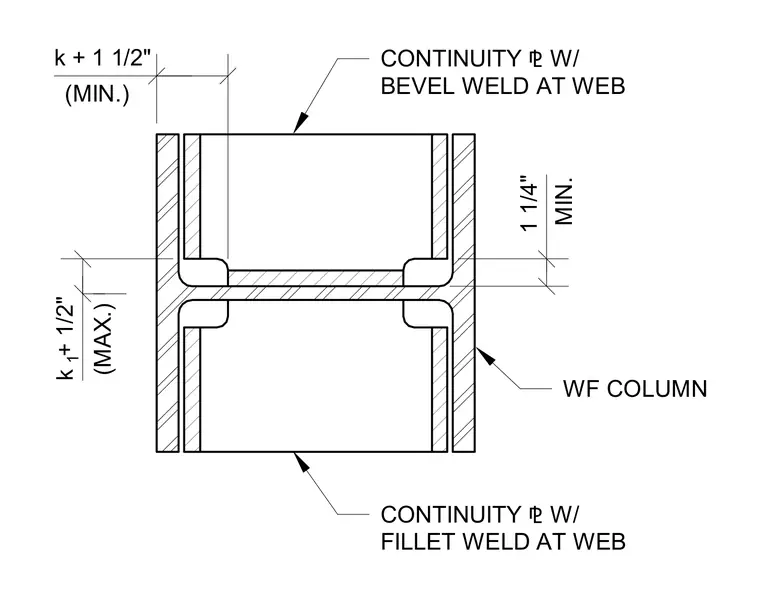

Continuity plates are welded inside a wide flange column web with specific cope dimensions at the corners to clear the fillet. The top plate features a bevel weld at the web with a minimum one-and-one-quarter-inch clearance dimension. The bottom plate utilizes a fillet weld at the web. Dimensional callouts establish a minimum extension of k plus one-and-one-half inches and a maximum dimension of k plus one-half inch.
1 1/4" MIN. WF COLUMN CONTINUITY ⅊ W/ FILLET WELD AT WEB CONTINUITY ⅊ W/ BEVEL WELD AT WEB k + 1 1/2" (MIN.) k + 1/2" 1 (MAX.)
