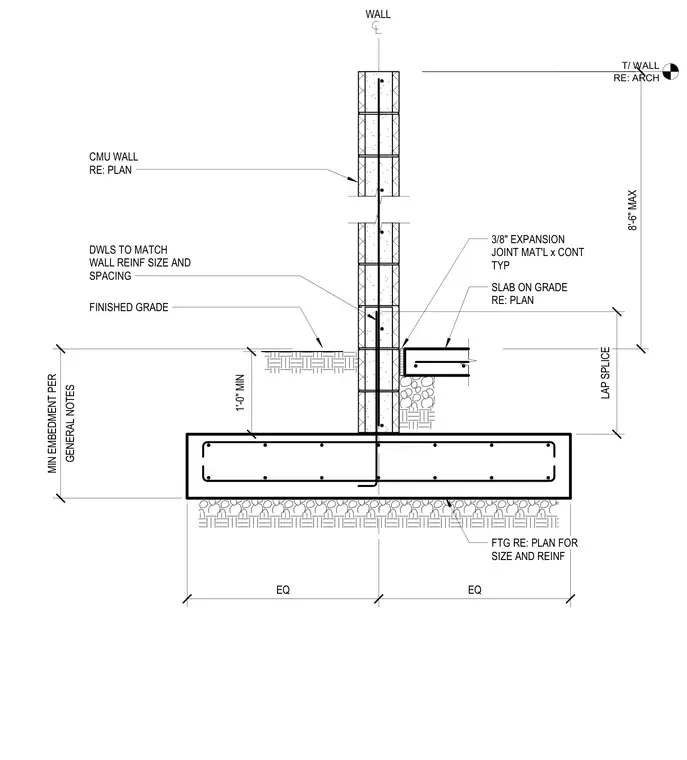

A reinforced concrete masonry unit wall bears on a continuous concrete footing sized per plan with specified minimum embedment. Vertical dowels matching the wall reinforcement size and spacing extend from the footing into the masonry core. A slab on grade intersects the wall with a continuous three-eighths-inch expansion joint material typical. The top of the wall extends up to an eight-foot-six-inch maximum height relative to architectural drawings.
CMU WALL RE: PLAN 3/8" EXPANSION JOINT MAT'L x CONT TYP EQ EQ FINISHED GRADE T/ WALL RE: ARCH WALL GENERAL NOTES MIN EMBEDMENT PER 8'-6" MAX LAP SPLICE SLAB ON GRADE RE: PLAN 1'-0" MIN FTG RE: PLAN FOR SIZE AND REINF DWLS TO MATCH WALL REINF SIZE AND SPACING
