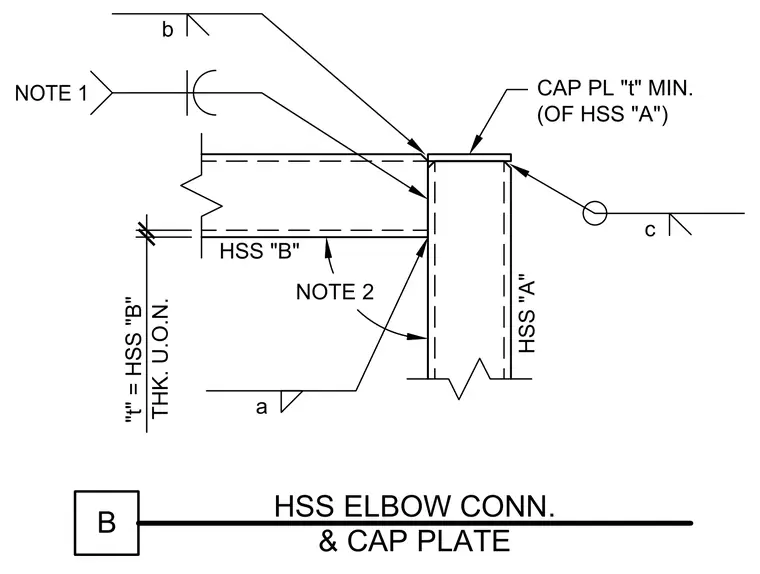

This connection details a horizontal hollow structural section member framing into a vertical hollow structural section member topped with a cap plate. A cap plate with a minimum thickness equal to the thickness of the vertical member is welded to the top of the vertical hollow structural section. The intersecting horizontal member features specific weld designations at the top and bottom flanges, along with matching thickness notes unless otherwise noted.
B HSS ELBOW CONN. & CAP PLATE HSS "B" HSS "A" NOTE 2 "t" = HSS "B" THK. U.O.N. NOTE 1 b CAP PL "t" MIN. (OF HSS "A") a c
