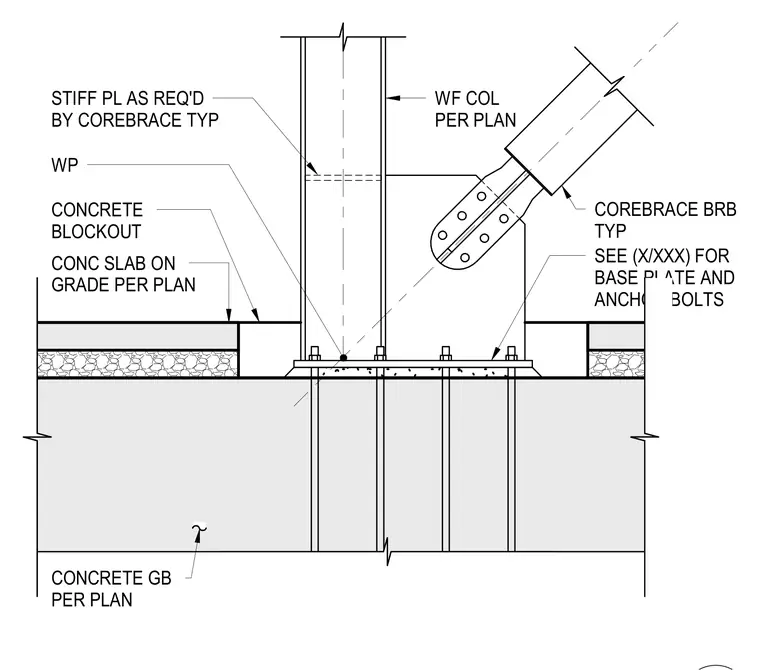

A CoreBrace buckling-restrained brace connects with a bolted lug to a wide-flange column and base plate assembly at the foundation. Stiffener plates are installed within the column as required by the brace configuration. The column bears on a concrete grade beam with a concrete blockout detailed at the concrete slab on grade per plan. Base plate and anchor bolt details are referenced to a separate sheet.
CONCRETE BLOCKOUT CONC SLAB ON GRADE PER PLAN WF COL PER PLAN WP CONCRETE GB PER PLAN COREBRACE BRB TYP SEE (X/XXX) FOR BASE PLATE AND ANCHOR BOLTS STIFF PL AS REQ'D BY COREBRACE TYP
