A structural steel column bears on a base plate secured by anchor bolts embedded in a reinforced concrete pile cap or footing. Non-shrink grout is placed beneath the base plate, while number four dowels at sixteen inches on center line each corner around the column on all four sides. Two number four U-bars are positioned within the concrete overpour encasement that surrounds the column base. The top and bottom reinforcing mats within the footing are sized per the foundation schedule, maintaining a minimum three-inch concrete clear cover. All exterior exposed steel is galvanized as specified.

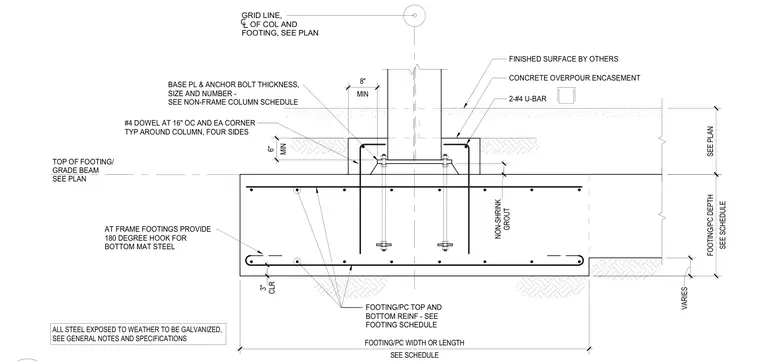

FOOTING/PC TOP AND BOTTOM REINF - SEE FOOTING SCHEDULE BASE PL & ANCHOR BOLT THICKNESS, SIZE AND NUMBER - SEE NON-FRAME COLUMN SCHEDULE GRID LINE, OF COL AND FOOTING, SEE PLAN #4 DOWEL AT 16" OC AND EA CORNER TYP AROUND COLUMN, FOUR SIDES AT FRAME FOOTINGS PROVIDE 180 DEGREE HOOK FOR BOTTOM MAT STEEL SEE SCHEDULE FOOTING/PC WIDTH OR LENGTH SEE SCHEDULE FOOTING/PC DEPTH . GROUT NON-SHRINK SEE PLAN TOP OF FOOTING/ GRADE BEAM SEE PLAN CLR 3" VARIES MIN 8" CONCRETE OVERPOUR ENCASEMENT 2-#4 U-BAR FINISHED SURFACE BY OTHERS MIN 6" ALL STEEL EXPOSED TO WEATHER TO BE GALVANIZED, SEE GENERAL NOTES AND SPECIFICATIONS
