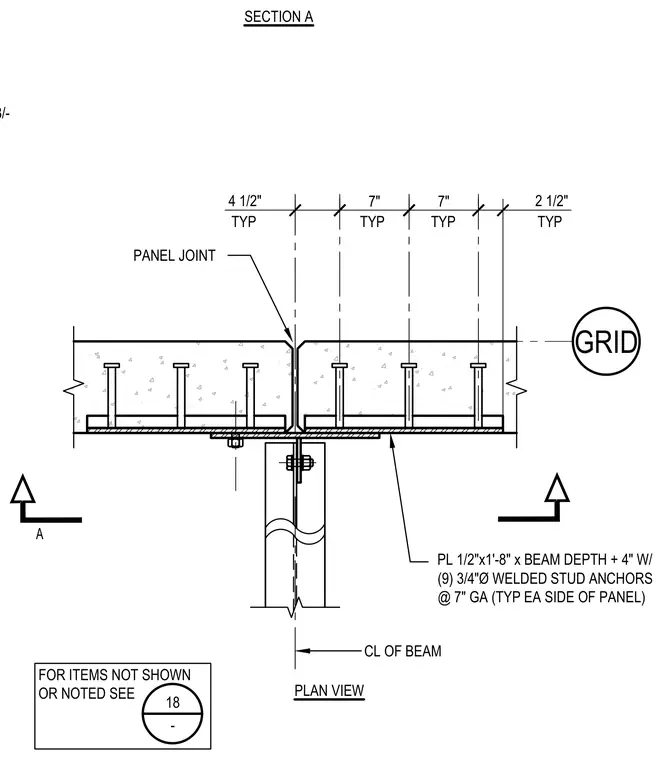

A structural steel beam aligns below a vertical panel joint between two precast concrete panels. A one-half-inch by one-foot-eight-inch plate with a length equal to the beam depth plus four inches bridges the joint. Nine three-quarter-inch diameter welded stud anchors spaced at seven inches gauge secure the plate to each side of the panel. The beam centerline aligns with the panel joint assembly.
GRID 4 1/2" 7" 7" 2 1/2" PANEL JOINT CL OF BEAM PL 1/2"x1'-8" x BEAM DEPTH + 4" W/ (9) 3/4"Ø WELDED STUD ANCHORS @ 7" GA (TYP EA SIDE OF PANEL) TYP TYP TYP TYP PLAN VIEW SECTION A A BOLTS PER 18/- FOR ITEMS NOT SHOWN OR NOTED SEE 18 -
