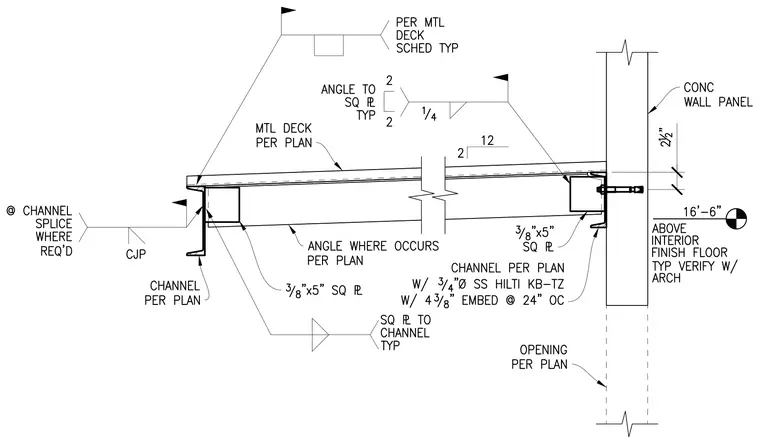

A structural steel canopy framing assembly connects to a concrete wall panel using a continuous channel anchored by three-quarter-inch diameter stainless steel Hilti KB-TZ expansion anchors with four-and-three-eighth-inch embedment spaced at twenty-four inches on center. A three-eighths-inch by five-inch square plate welds to the channel with a fillet weld, supporting an angle member where specified by plan. The outer edge of the canopy features a channel section spliced with complete joint penetration welds and topped with metal deck per plan.
