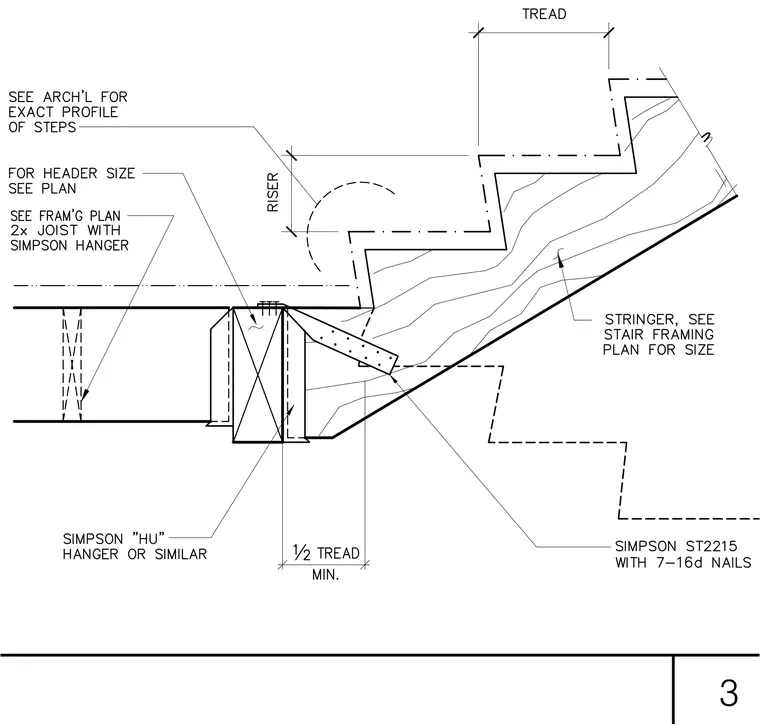

A wood stair stringer frames into a floor header using a Simpson HU hanger or similar connector, with a Simpson ST2215 strap fastened with seven 16d nails. The floor framing consists of a two-by joist with a Simpson hanger, with the header size sized per plan. The stair stringer size is referenced from the stair framing plan, and the exact step profile is coordinated with architectural drawings.
