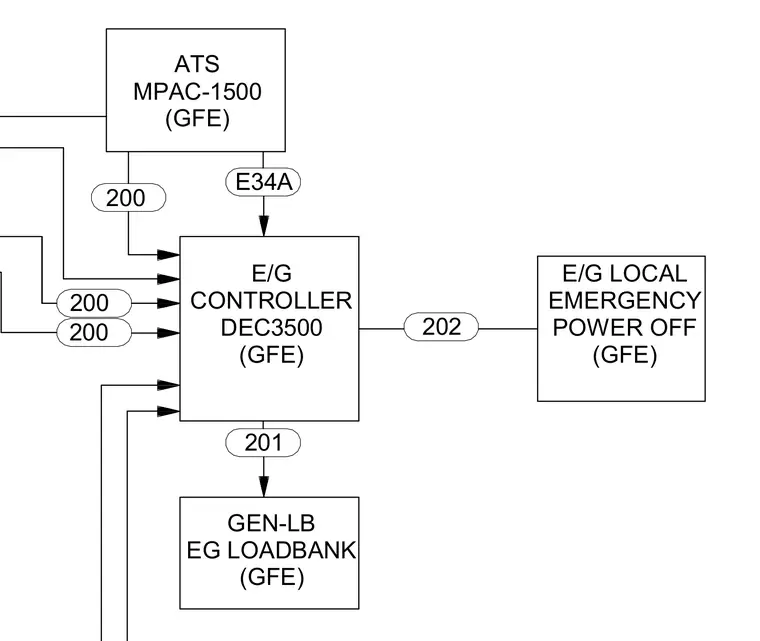

An engine generator controller connects to an automatic transfer switch, a local emergency power off switch, and a loadbank. Wiring conduits interface with the DEC3500 controller via numbered circuit callouts. Government-furnished equipment units are integrated into the emergency power control schematic.
ATS MPAC-1500 (GFE) E/G CONTROLLER DEC3500 (GFE) GEN-LB EG LOADBANK (GFE) 200 201 200 200 E34A E/G LOCAL EMERGENCY POWER OFF (GFE) 202
