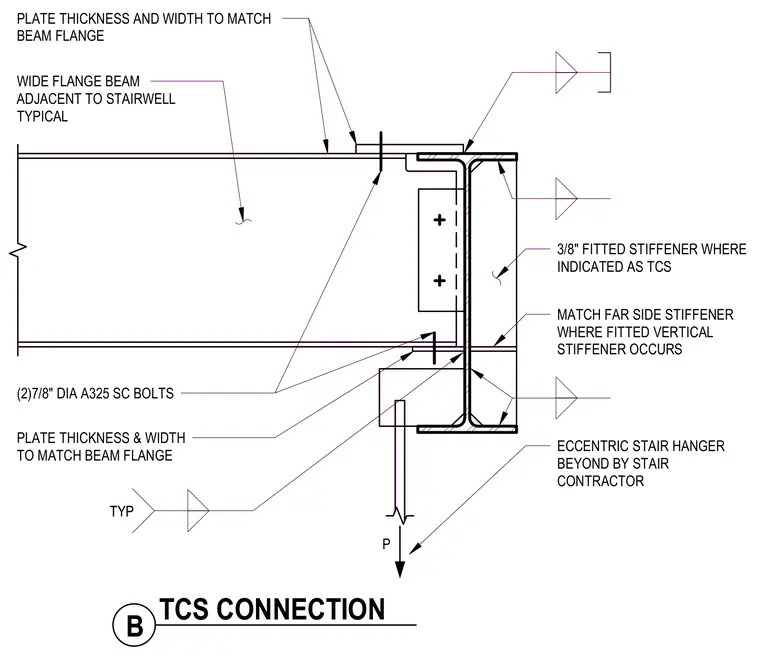

A wide flange beam adjacent to a stairwell connects to a supporting member using a top and bottom connection plate matching the beam flange thickness and width. Two three-quarter-inch diameter A325 slip-critical bolts fasten the plate assembly. Three-eighth-inch fitted stiffeners are provided where indicated as TCS, with vertical stiffeners matched on the far side. An eccentric stair hanger extends downward from the connection, installed by the stair contractor.
PLATE THICKNESS & WIDTH TO MATCH BEAM FLANGE 3/8" FITTED STIFFENER WHERE INDICATED AS TCS P ECCENTRIC STAIR HANGER BEYOND BY STAIR CONTRACTOR MATCH FAR SIDE STIFFENER WHERE FITTED VERTICAL STIFFENER OCCURS TYP (2)7/8" DIA A325 SC BOLTS WIDE FLANGE BEAM ADJACENT TO STAIRWELL TYPICAL PLATE THICKNESS AND WIDTH TO MATCH BEAM FLANGE B TCS CONNECTION PLATE THICKNESS & WIDTH TO MATCH BEAM FLANGE 3/8" FITTED STIFFENER WHERE INDICATED AS TCS P ECCENTRIC STAIR HANGER BEYOND BY STAIR CONTRACTOR MATCH FAR SIDE STIFFENER WHERE FITTED VERTICAL STIFFENER OCCURS TYP (2)7/8" DIA A325 SC BOLTS WIDE FLANGE BEAM ADJACENT TO STAIRWELL TYPICAL PLATE THICKNESS AND WIDTH TO MATCH BEAM FLANGE B TCS CONNECTION
