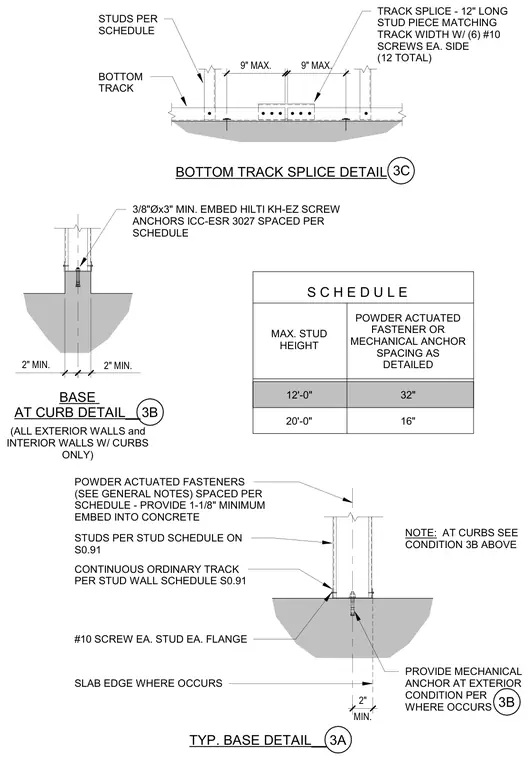

Cold-formed metal stud wall base connections and track splices anchored to concrete slabs and curbs. The typical stud wall base features a continuous bottom track fastened to a concrete slab with powder-actuated fasteners or mechanical anchors providing a minimum one-and-one-eighth-inch embedment, supplemented by number-ten screws at each stud flange. Exterior walls and interior walls with curbs require mechanical anchors such as three-eighths-inch diameter by three-inch minimum embedment Hilti KH-EZ screw anchors spaced per schedule. Bottom track splices are detailed with a twelve-inch long stud piece matching the track width, secured with six number-ten screws on each side for a total of twelve screws.
3A TYP. BASE DETAIL__ BASE AT CURB DETAIL__ 3B BOTTOM TRACK SPLICE DETAIL 3C TRACK SPLICE - 12" LONG STUD PIECE MATCHING TRACK WIDTH W/ (6) #10 SCREWS EA. SIDE (12 TOTAL) STUDS PER SCHEDULE BOTTOM TRACK 9" MAX. 9" MAX. 2" MIN. 3/8"Øx3" MIN. EMBED HILTI KH-EZ SCREW ANCHORS ICC-ESR 3027 SPACED PER SCHEDULE MAX. STUD HEIGHT POWDER ACTUATED FASTENER OR MECHANICAL ANCHOR SPACING AS DETAILED 12'-0" 20'-0" 32" 16" S C H E D U L E NOTE: AT CURBS SEE CONDITION 3B ABOVE POWDER ACTUATED FASTENERS (SEE GENERAL NOTES) SPACED PER SCHEDULE - PROVIDE 1-1/8" MINIMUM EMBED INTO CONCRETE STUDS PER STUD SCHEDULE ON S0.91 CONTINUOUS ORDINARY TRACK PER STUD WALL SCHEDULE S0.91 #10 SCREW EA. STUD EA. FLANGE SLAB EDGE WHERE OCCURS 2" MIN. (ALL EXTERIOR WALLS and INTERIOR WALLS W/ CURBS ONLY) PROVIDE MECHANICAL ANCHOR AT EXTERIOR CONDITION PER WHERE OCCURS 3B MIN. 2"
