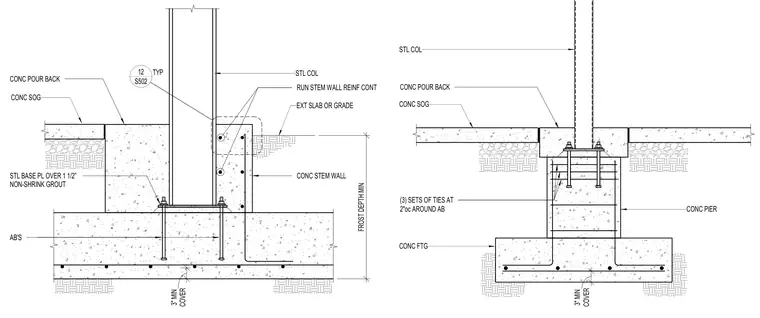

A steel column bears on a steel base plate set over 1 1/2" of non-shrink grout, anchored by anchor bolts embedded into a concrete footing and pier with a concrete stem wall and slab on grade. The concrete pier features three sets of ties at 2" on center around the anchor bolts. Continuous stem wall reinforcement is provided with a 3" minimum concrete cover for frost depth protection. A concrete pour-back is placed adjacent to the column base and slab on grade.
CONC STEM WALL EXT SLAB OR GRADE STL COL STL BASE PL OVER 1 1/2” NON-SHRINK GROUT CONC SOG CONC POUR BACK AB'S RUN STEM WALL REINF CONT COVER 3" MIN FROST DEPTH MIN S502 12 TYP CONC POUR BACK (3) SETS OF TIES AT 2"oc AROUND AB CONC PIER CONC FTG CONC SOG STL COL COVER 3" MIN
