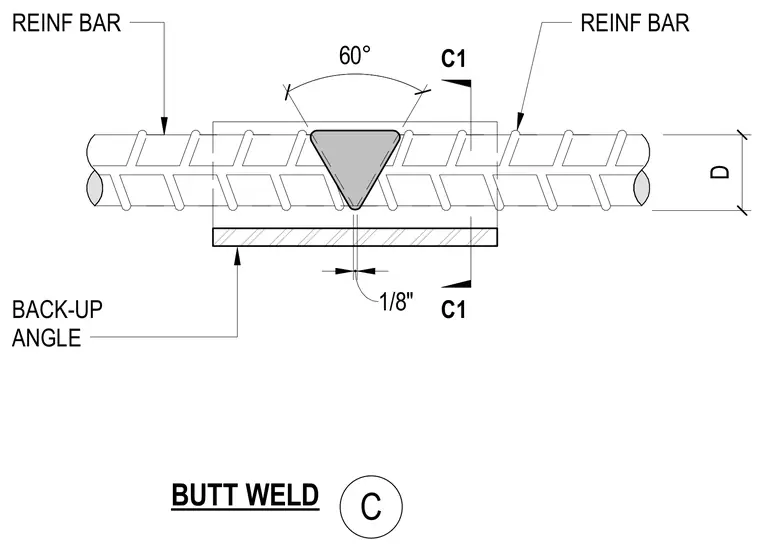

Two aligned reinforcing bars are joined with a complete joint penetration butt weld featuring a sixty degree bevel angle. A back-up angle is placed underneath the joint with a one-eighth inch root opening between the bar ends.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
