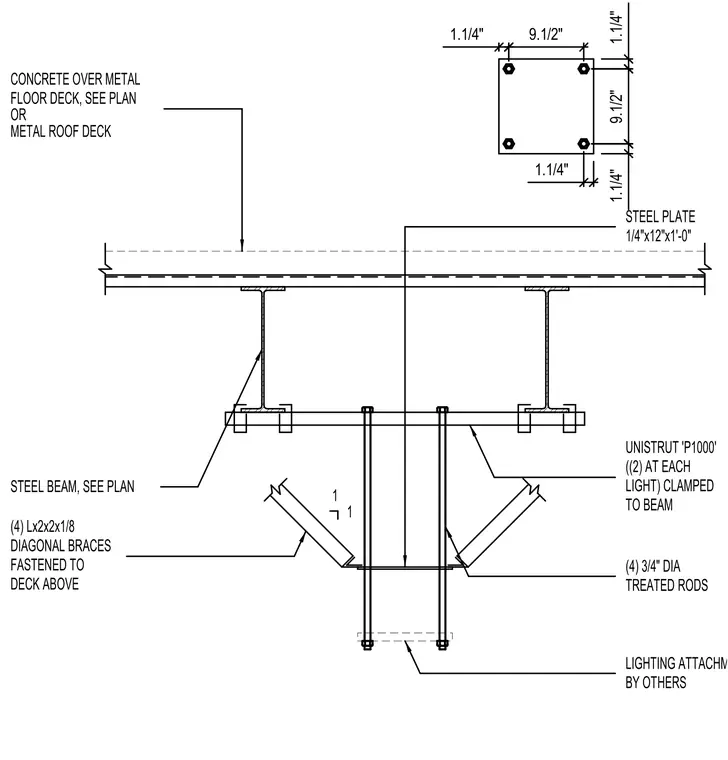

An exam light is suspended from overhead steel framing consisting of steel beams supporting a concrete over metal floor deck or metal roof deck. Two Unistrut P1000 channels are clamped to the bottom flanges of the steel beams to support the hanging assembly. Four three-quarter-inch diameter treated rods extend downward to provide the lighting attachment point provided by others. Four 2x2x1/8-inch diagonal angle braces connect back to the deck above for lateral stability. A 1/4x12x12-inch steel plate ties the lower hanger rods and bracing together.
(4) Lx2x2x1/8 DIAGONAL BRACES FASTENED TO DECK ABOVE STEEL PLATE 1/4"x12"x1'-0" UNISTRUT 'P1000' ((2) AT EACH LIGHT) CLAMPED TO BEAM (4) 3/4" DIA TREATED RODS LIGHTING ATTACHMENT BY OTHERS STEEL BEAM, SEE PLAN CONCRETE OVER METAL FLOOR DECK, SEE PLAN METAL ROOF DECK OR 1 1 1.1/4" 9.1/2" 1.1/4" 9.1/2" 1.1/4" 1.1/4"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
