A C12 steel channel stair stringer connects to a concrete wall using a five-eighth-inch by one-foot-four-inch square embed plate welded with eight five-eighth-inch diameter by five-inch long studs equally spaced. The stringer connection to the embed follows the typical beam schedule. A guardrail mounts directly to the assembly at the stringer.

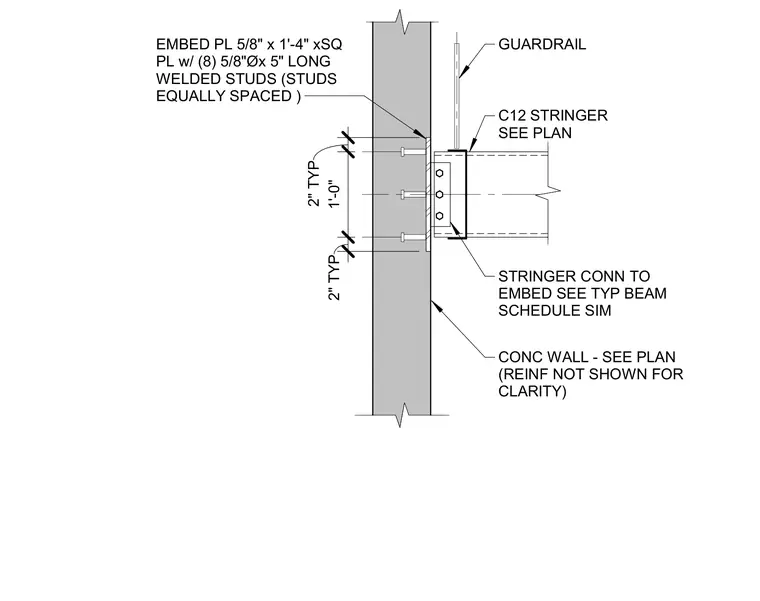

EMBED PL 5/8" x 1'-4" xSQ PL w/ (8) 5/8"Øx 5" LONG WELDED STUDS (STUDS EQUALLY SPACED ) GUARDRAIL C12 STRINGER SEE PLAN STRINGER CONN TO EMBED SEE TYP BEAM SCHEDULE SIM 2" TYP 1'-0" 2" TYP CONC WALL - SEE PLAN (REINF NOT SHOWN FOR CLARITY)
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
