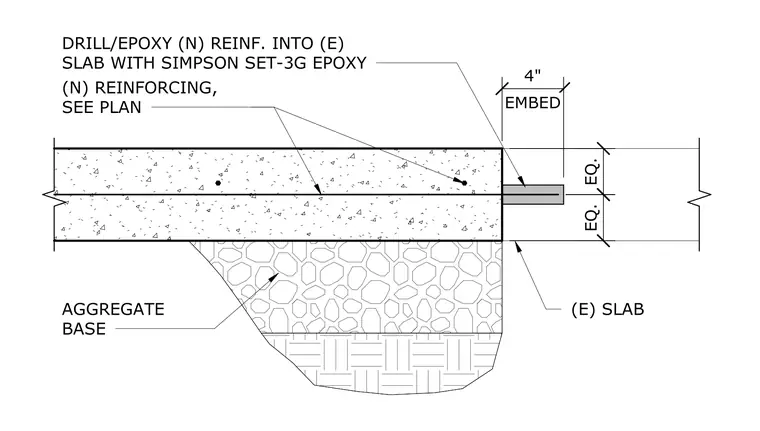

New reinforcing steel anchors into an existing concrete slab with a four-inch embedment depth using Simpson SET-3G epoxy adhesive. The reinforcing bar centers between the top and bottom surfaces of the slab, with bar size and spacing per the structural plan. The existing slab rests on an aggregate base.
Text on the drawing
(N) REINFORCING, SEE PLAN (E) SLAB DRILL/EPOXY (N) REINF. INTO (E) SLAB WITH SIMPSON SET-3G EPOXY AGGREGATE BASE EMBED 4" EQ. EQ.
