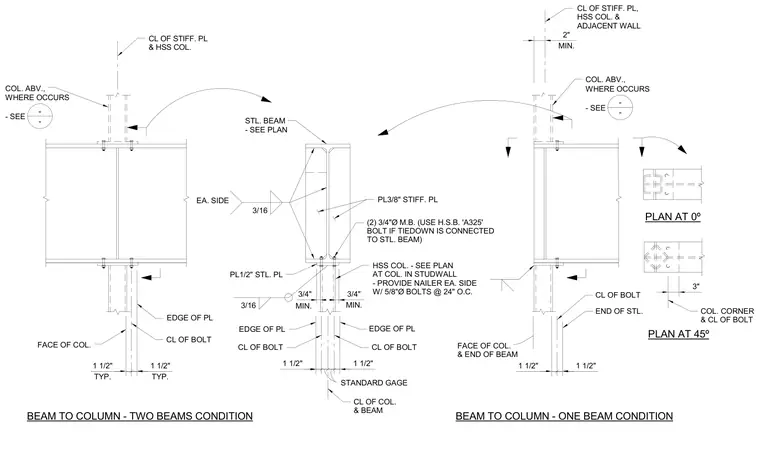

A steel beam connects to a hollow structural section column utilizing a three-eighths-inch stiffener plate and a one-half-inch steel plate. Two three-quarter-inch diameter machine bolts secure the assembly, specifying high-strength ASTM A325 bolts when a tiedown connects to the steel beam. Three-sixteenth-inch fillet welds attach the plates to the members. When the column occurs in a stud wall, wood nailers are provided on each side using five-eighths-inch diameter bolts spaced at twenty-four inches on center.
FACE OF COL. CL OF BOLT FACE OF COL. & END OF BEAM STANDARD GAGE 3/4" MIN. 3/4" MIN. BEAM TO COLUMN - TWO BEAMS CONDITION CL OF BOLT CL OF STIFF. PL & HSS COL. EDGE OF PL BEAM TO COLUMN - ONE BEAM CONDITION END OF STL. CL OF STIFF. PL, HSS COL. & ADJACENT WALL PLAN AT 0º PLAN AT 45º COL. CORNER & CL OF BOLT CL OF BOLT EDGE OF PL EA. SIDE 3/16 3/16 CL OF BOLT EDGE OF PL (2) 3/4"Ø M.B. (USE H.S.B. 'A325' BOLT IF TIEDOWN IS CONNECTED TO STL. BEAM) PL3/8" STIFF. PL STL. BEAM - SEE PLAN HSS COL. - SEE PLAN AT COL. IN STUDWALL - PROVIDE NAILER EA. SIDE W/ 5/8"Ø BOLTS @ 24" O.C. PL1/2" STL. PL COL. ABV., WHERE OCCURS - SEE - - COL. ABV., WHERE OCCURS - SEE - - CL OF COL. & BEAM 1 1/2" 1 1/2" 3" 2" MIN. 1 1/2" 1 1/2" 1 1/2" TYP. 1 1/2" TYP.
