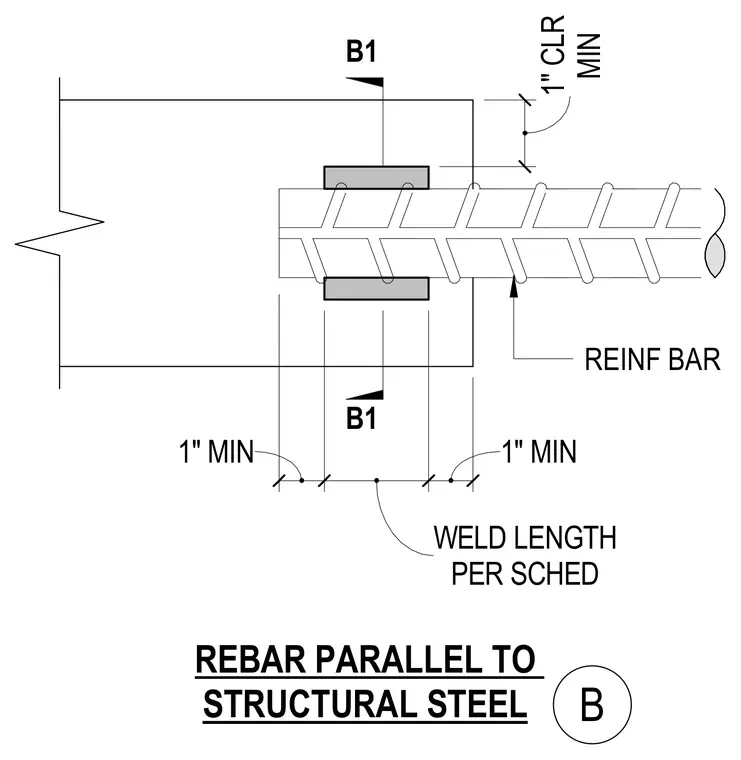

A reinforcing bar runs parallel to a structural steel member with a minimum one-inch clearance. The bar connects to the steel via welds sized per schedule with a one-inch minimum length.
1" MIN PER SCHED WELD LENGTH 1" MIN REINF BAR B1 B1 REBAR PARALLEL TO STRUCTURAL STEEL B MIN 1" CLR
