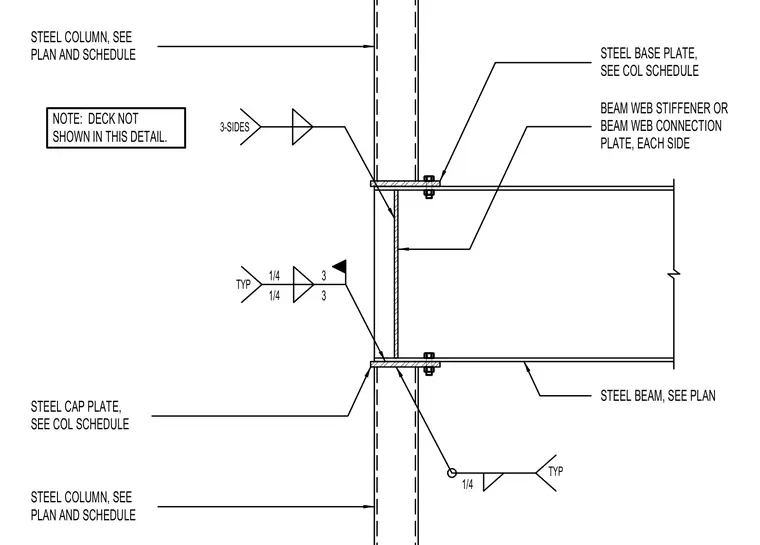

A steel beam frames into a steel column with a steel cap plate sized per the column schedule. Beam web stiffeners or connection plates are attached to each side of the beam web. Fillet welds of one-quarter inch size are specified typically around the connection assembly. The steel column and steel beam sizes are sized per plan and schedule. Note that the metal deck is omitted from this detail view.
3-SIDES TYP 1/4 1/4 1/4 TYP 3 3 STEEL CAP PLATE, SEE COL SCHEDULE BEAM WEB STIFFENER OR BEAM WEB CONNECTION PLATE, EACH SIDE STEEL BEAM, SEE PLAN STEEL COLUMN, SEE PLAN AND SCHEDULE STEEL BASE PLATE, SEE COL SCHEDULE STEEL COLUMN, SEE PLAN AND SCHEDULE NOTE: DECK NOT SHOWN IN THIS DETAIL.
