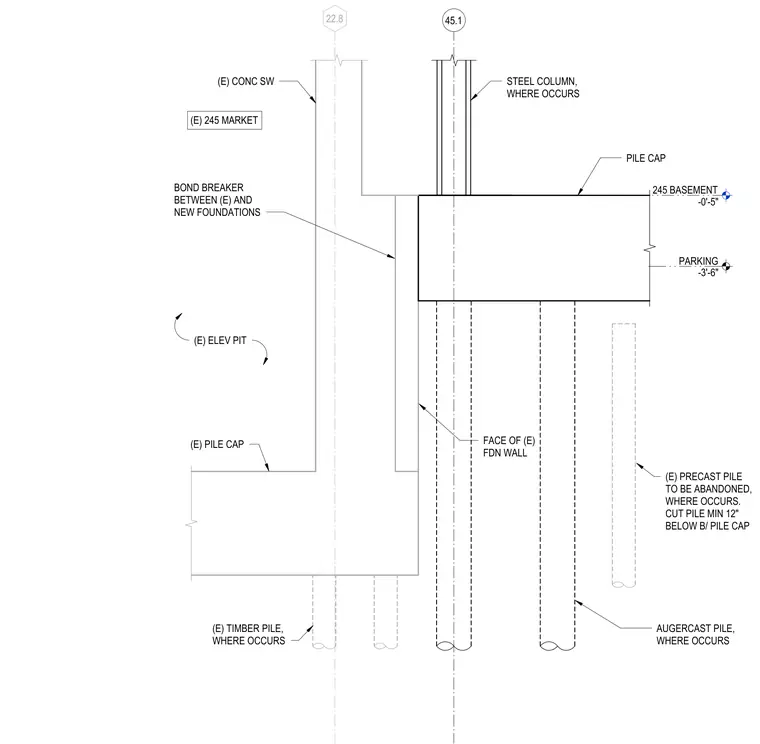

A new concrete pile cap supports a steel column above while bearing on augercast piles. A bond breaker separates the new foundation from the existing concrete shear wall and foundation wall. Existing timber piles occur below the lower pile cap level. Any existing precast piles to be abandoned are cut a minimum of 12 inches below the bottom of the pile cap.
245 BASEMENT -0'-5" 22.8 45.1 PARKING -3'-6" (E) TIMBER PILE, WHERE OCCURS (E) 245 MARKET AUGERCAST PILE, WHERE OCCURS PILE CAP STEEL COLUMN, WHERE OCCURS (E) CONC SW (E) PILE CAP (E) PRECAST PILE TO BE ABANDONED, WHERE OCCURS. CUT PILE MIN 12" BELOW B/ PILE CAP BOND BREAKER BETWEEN (E) AND NEW FOUNDATIONS FACE OF (E) FDN WALL (E) ELEV PIT
