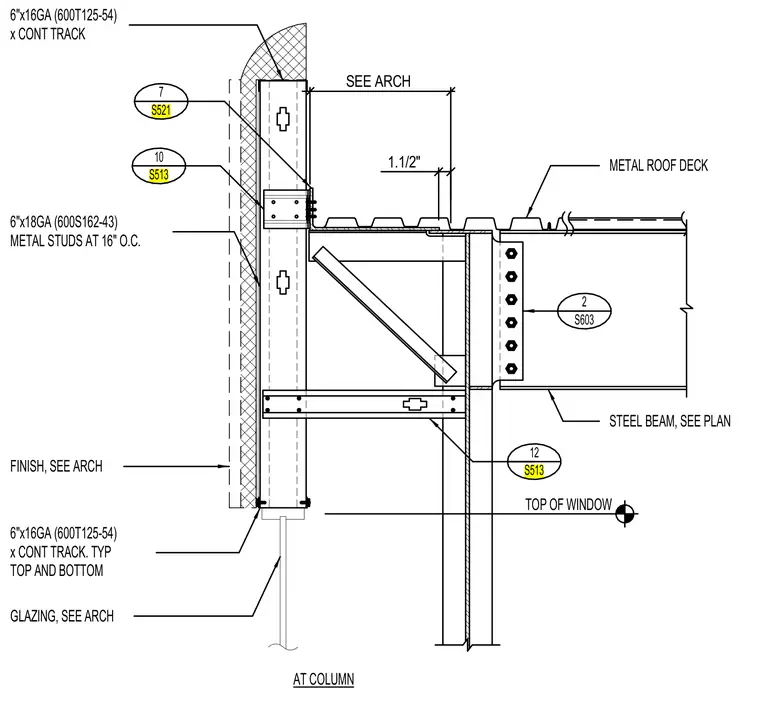

Cold-formed metal studs consisting of 6-inch by 18-gauge members spaced at 16 inches on center frame the wall assembly below the roof deck. The exterior wall features continuous 6-inch by 16-gauge top and bottom tracks. A structural steel beam supports the metal roof deck at a 1.1/2-inch offset from the exterior framing. Window glazing aligns below the structural connection, with the top of the window marked relative to the steel framing.
2 S603 12 S513 10 S513 7 S521 1.1/2" SEE ARCH AT COLUMN 6"x16GA (600T125-54) x CONT TRACK FINISH, SEE ARCH 6"x18GA (600S162-43) METAL STUDS AT 16" O.C. GLAZING, SEE ARCH 6"x16GA (600T125-54) x CONT TRACK. TYP TOP AND BOTTOM TOP OF WINDOW METAL ROOF DECK STEEL BEAM, SEE PLAN
