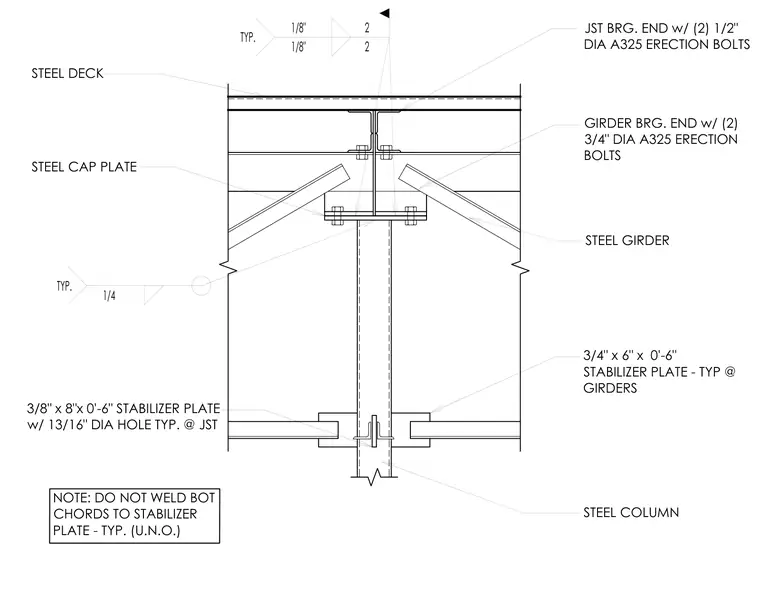

A steel column supports a steel cap plate at its top, carrying a steel girder bearing end secured with two three-quarter-inch diameter A325 erection bolts. A three-quarter-inch by six-inch by zero-foot-six-inch stabilizer plate is provided at the girder ends. A steel joist bears at the top level with two half-inch diameter A325 erection bolts. A three-eighths-inch by eight-inch by zero-foot-six-inch stabilizer plate with a thirteen-sixteenths-inch diameter hole is provided at the joist. Bottom chords are left unwelded to the stabilizer plate unless noted otherwise.
GIRDER BRG. END w/ (2) 3/4" DIA A325 ERECTION BOLTS 3/4" x 6" x 0'-6" STABILIZER PLATE - TYP @ GIRDERS STEEL GIRDER JST BRG. END w/ (2) 1/2" DIA A325 ERECTION BOLTS STEEL COLUMN NOTE: DO NOT WELD BOT CHORDS TO STABILIZER PLATE - TYP. (U.N.O.) TYP. 1/4 3/8" x 8"x 0'-6" STABILIZER PLATE w/ 13/16" DIA HOLE TYP. @ JST STEEL CAP PLATE TYP. 1/8" 1/8" 2 2 STEEL DECK
