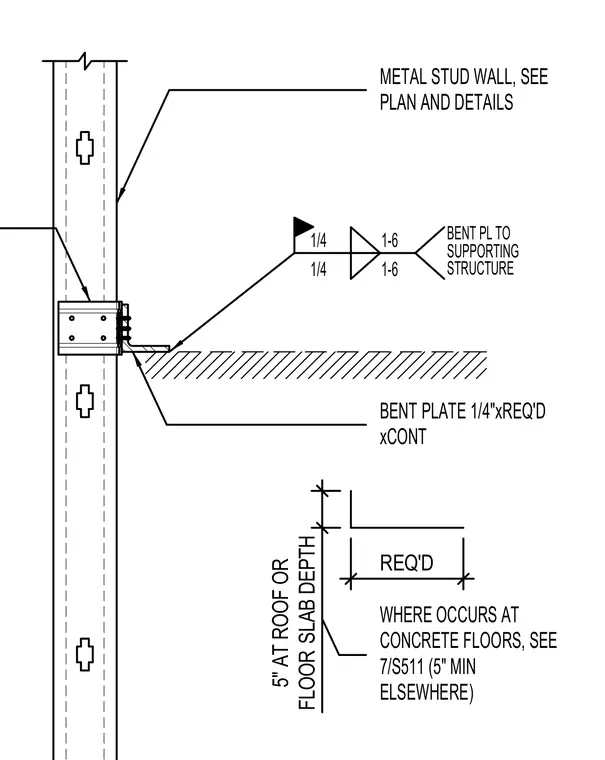

A continuous one-quarter-inch bent plate supports the metal stud wall assembly at the concrete floor or roof slab edge. The bent plate is secured to the supporting structure with welds. The slab depth is five inches at the roof or floor, with specific conditions referenced on structural drawings.
BENT PLATE 1/4"xREQ'D xCONT METAL STUD WALL, SEE WHERE OCCURS AT CONCRETE FLOORS, SEE 7/S511 (5" MIN ELSEWHERE) 1/4 SUPPORTING 1/4 1-6 1-6 BENT PL TO STRUCTURE PLAN AND DETAILS 5" AT ROOF OR FLOOR SLAB DEPTH REQ'D
