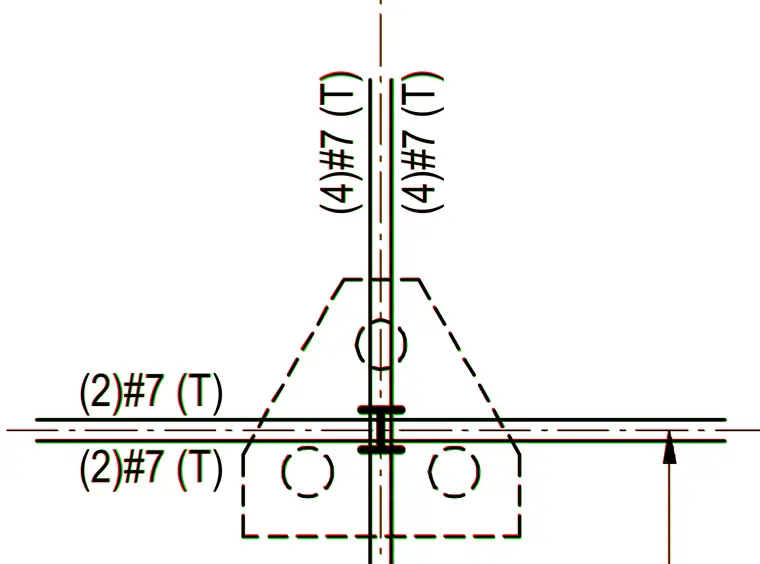

The intersection of reinforced concrete elements features multiple number 7 reinforcing bars designated with top placement. A gusset plate assembly with multiple fastener or anchor locations secures the structural members at the joint intersection. Centerline alignments guide the precise positioning of the crossing members and their corresponding reinforcement.
